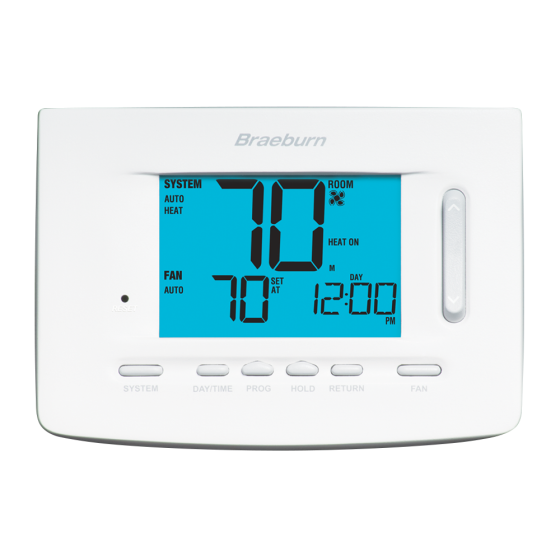

Braeburn® Premiere 7/5+2 Day Programmable Thermostat 2H/2C (3H/2C HP), 24Vac/3Vdc (2 AA)
Item
5220B-C
FEATURES
• Day, 5-2 Day or Non-Programmable• Large 5 sq. in. Display with Bright Blue Backlight
• Auto or Manual Changeover
• SpeedBar Multi-Function Button
• Adjustable Temperature Limits
• Indoor or Outdoor Remote Sensing
• Meets Energy Aware ® Guidelines*
• SpeedSet Programming Mode
• Separate User and Installer Reset Buttons
• Auxiliary Heat Fossil Fuel Option
• Hardwire or Battery Powered
• Multi-Level Keypad Lockout
• Adaptive Recovery Mode (ARM )
• Programmable and Circulating Fan Modes
• Temporary Override Limits
• Residential or Commercial Modes
• Compatible with 2 or 3 Wire Hydronic Zone Systems
SPECIFICATIONS
• Dimensions: 3.8” x 5.5” x 1.42”• Electric Rating: 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 5 amp total maximum load (all terminals)
• AC Power: 18-30 Volt AC
• DC Power: 3.0 Volts DC (2 “AA” Alkaline batteries included)
• Compatibility: Heat pump systems up to 3 heat/2 cool, Conventional systems up to 2 heat/2 cool 250mv – 750mv millivolt heating systems
• Control Range: 45° to 90° F (7° to 32° C)
• Display Range: 40° to 99° F (5° to 37° C)
• Accuracy: +/- 1° F (+/- .5° C)
• Temperature Differential: 1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) 2nd and 3rd Stage - 1°, 2°, 3°, 4°, 5°, or 6° F (.5°, 1°, 1.5°, 2°, 2.5°, or 3° C)
• Storage Temperature: 14° to 140° F (-10° to 60° C)
• Operating Humidity: 5% to 95% Relative Humidity
• Terminations: G, Rc, Rh, W2, O/B/V3, Y1, Y2, W1/E/W3, C, L, S1, S2
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 1.000000 |
