FEATURES

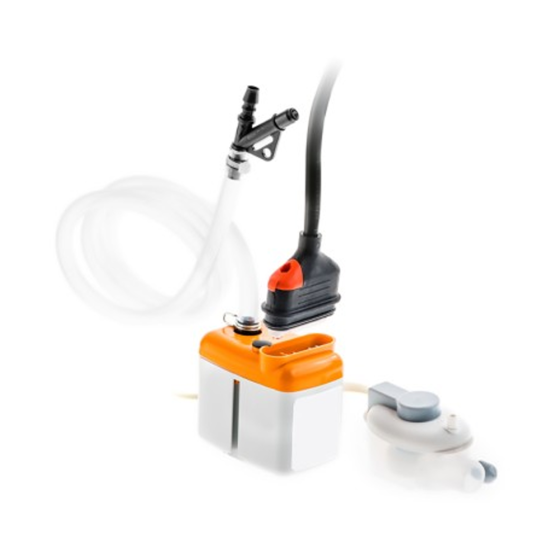

Use the two-part accessory kit (condensate pump and detection unit) with ductless split fan coils. The pump operates whenever the condensate level in the detection unit is high enough to cause the magnetic float switch to send a signal to start the pump. The float switch in the detection unit also prevents overflow and can act as a safety device by shutting down the system. The detection unit comes with normally closed (NC) alarm contacts (user optional, but recommended). The normally closed alarm contact is a dry contact rated for 8 amps at 250 volts. In the event of a problem such as a clogged drain or pump discharge line, the alarm contact can be wired to shut down the entire system. The condensate pump provides 10 ft. (3.0 m) maximum suction lift.
INCLUDES
• 16-ft Transparent Suction/Discharge Tubing• Condensate Pump Assembly
• Low-Voltage Power Cord
• Transparent Detection Unit Vent Tubing
• Power Cable
• 6 Wire Ties
• Wall Mount Bracket
• Adhesive
• Detection Unit Mounting Bracket
• Rubber Adapter
• Detection Unit
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.9 | Exterior Dimensions (D) (inches) | 4.400000 | Exterior Dimensions (W) (inches) | 3.600000 | Exterior Dimensions (H) (inches) | 3.600000 | Shipping Weight (lbs) | 2.000000 |
