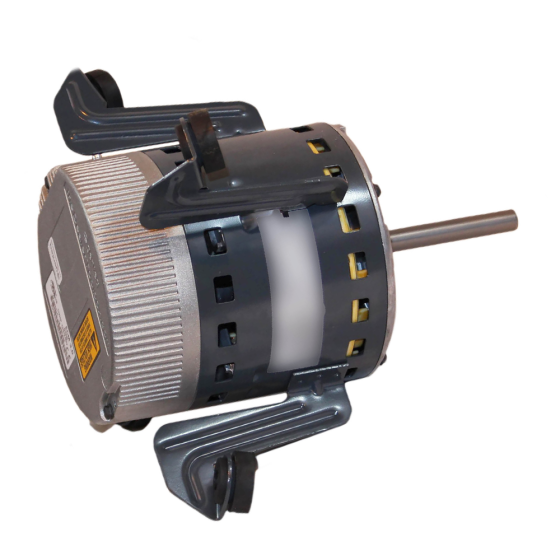

Direct Drive Blower Motor Kit 1/2HP, 1300RPM, 120/240Vac, 7.7A, (ECM)
Item
58MV660004
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 39 | Motor HP | 1/2 | Motor Type | ECM | RPM | 1300 | Shaft Diameter | 0.50 | Shaft Length | 3.92 |
| Electrical | |
|---|---|
| Amps | 7.7 | Hertz | 60 | Voltage | 120/240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 11.85 | Exterior Dimensions (D) (inches) | 10.250000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 16.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
