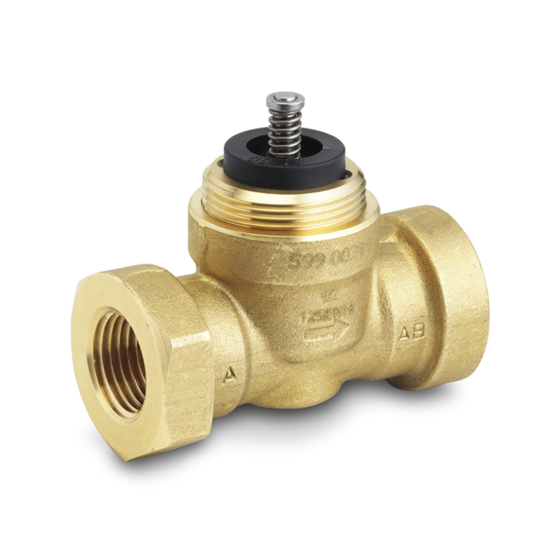

599 Series Zone Valve 3/4 in., Two-Way, 4.1 Cv, Linear, 1/10 in. End Stroke, NPT
Item
599-00212
FEATURES
The 599 Series two-way and three-way Zone Valves with a 1/10-inch (2.5 mm) stroke.
SPECIFICATIONS
• Direct-coupled, universal bonnet• Line size: 3/4”
• Body Style: Globe
• Seat Style: Metal-to-Metal
• Action: NO/NC determined by actuator
• Valve Body Rating: ANSI Class 125
• Stem Travel (Stroke): 1/10” (2.5mm)
• MATERIAL
• Body: Brass
• Body Trim: Brass
• Stem: Stainless Steel
OPERATING
• Controlled Medium: Water, Glycol solutions to 50%• Medium Temperature Range: 34 ° to 230 °F (1 °C to 110 °C)
• Maximum Inlet Pressure: 125 psig
• Close Off Pressure: 44 Psi
• Close-off ratings (AB-A): According to ANSI/FCI 70-2
• Leakage rate: ANSI Class III (AB-A)
• Flow characteristics: Linear
• Mounting location: NEMA 1 (interior only)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Connection Size | 3/4 in. | Connection Size 2 | 3/4 in. |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 3.000000 |
