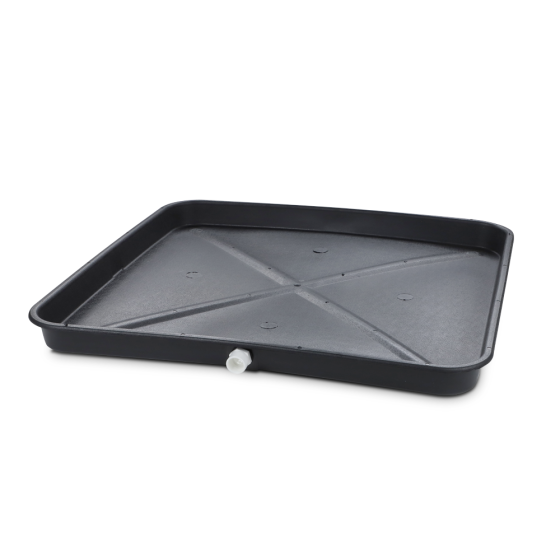

DiversiTech® Condensate Drain Pan 30" x 30"

Item
6-3030L
  • California Prop 65

APPLICATIONS

Plastic Drain Pans are used to collect condensate from cooling and evaporator coils in locations where damage to any building component could occur as a result of overflow from the equipment drain pan or stoppage of the condensate drain piping. The pan is designed with a seamless one-piece construction, are fully nestable for easy storage and tailored for easy distribution and installation. Drain outlet location is indicated by an “S” or “L” at the end of the part number and ¾ in. PVC fittings come included with the pan.

FEATURES & BENEFITS

• Rolled edges for durability, ribbed bottoms for rigidity, and reinforced corners for strength
• Pan holds up to 2 inches of water; comes equipped with 3/4 inch diameter PVC discharge fitting
• The seamless construction features rolled edges on all sides for maximum safety and integrity
• No seams, no rust, and no leakage
• Complies with 2021 International Mechanical Code Section 307.2.3
• Made from Polypropylene
• Nominal thickness: 0.115”

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 32.000000
Exterior Dimensions (W) (inches) 32.000000
Exterior Dimensions (H) (inches) 2.000000
Shipping Weight (lbs) 5.000000
