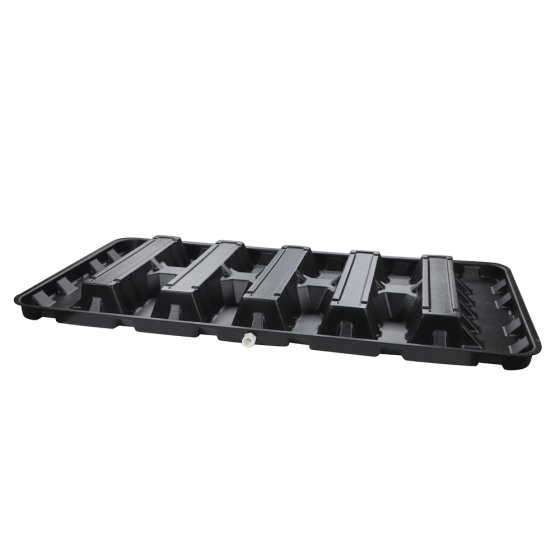

DiversiTech® High Rise Condensate Drain Pan & Install Kit 30" x 60"

APPLICATIONS

The High Rise Pan™ is an innovative new plastic drain pan design which allows placement of an air handler 2-3/4” above the outside lip of the pan and a total of 5” of lift from the bottom of the pan.

FEATURES & BENEFITS

• The High Rise Pan™ is constructed of a heavy-duty ABS plastic material that is 80% thicker than standard pans and is designed with a bevy of well positioned reinforcements and risers. These reinforcements and risers allow for a strong, durable and versatile drain pan that can hold a wide variety of air handlers 5” higher than normal pans. Molded-in depressions in the risers make a perfect mounting point for 2x2 anti-vibration pads, which means quiet operation. The one-piece construction makes the pan nestable with other pans and with rolled edges its superior in its resistance to splitting, leaking, cracking, or rusting.
• Nominal Thickness: 0.125”
• Material: ABS
• Rise: 5”
• Heat distortion temperature (ASTM 648): 199°F @ 264 psi, 211°F @ 66 psi
• Flexural strength (ASTM 790): 9,300 psi
• Tensile strength (ASTM 638): 5,300 psi
• Load support: 350 lbs (All loads must be evenly distributed.)

INCLUDES

• CC-1 float switch
• 6 E.V.A. Anti-Vibration Pads
• 1 3/4” PVC male adapter
