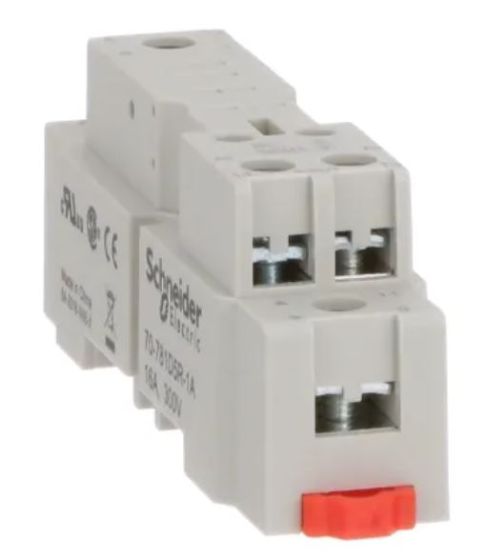

Relay Socket, 1 Pole, SPDT, Slim-Line, DIN/Panel, IP20 Socket

Item
70-781D5R-1A
  • California Prop 65

Overview

Schneider Electric/Legacy Relays 781 Series — Ice Cube Relays / SPDT, 20 A | General Purpose Power Relays:

The world leader in contactors enhances its offer with a complete range of plug-in relays. When mated with SE Relays sockets and accessories, these RoHS compliant relays provide a complete modular system that will meet all your plug-in relay requirements in a package that is both visually appealing and functionally outstanding. The 700 Family of Series includes: the 781, 782 783 & 784 relays, these square base ice cube relays offer a wide range of contact configurations, contact ratings (3 to 20 A) and cover options.

Features:
  • Socket, panel, and DIN mounting options
  • Multiple features and contact configurations available
  • Optional protection, mounting, and identification accessories
  • Ideal choice for direct replacement in MRO applications (maintenance, repair, and operations)
  • UL Class I Division 2 models for hazardous locations
Safety Standards
California Prop 65 Yes
Hazardous Material No
Weights and Dimensions
Operating Weight (lbs) 4
Exterior Dimensions (D) (inches) 3.000000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 4.000000
