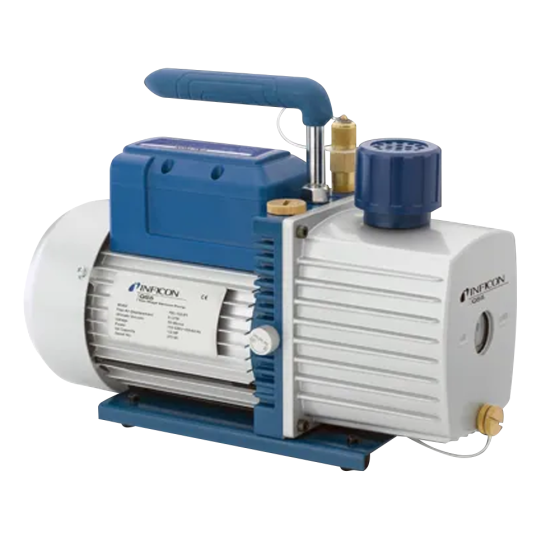

Infinicon 2-Stage Vacuum Pump 5CFM, 1/2 Horsepower (A2L Compatible)

Item
700-100-P1-QS5
  • California Prop 65

APPLICATIONS

The INFICON QS5 Vacuum Pump is designed for quick, deep evacuation as well as affordability and durability.

QS5 is a two-stage, rotary vane pump with 5 CFM rated displacement for ultimate vacuum down to 15 microns. Features such as a large oil sightglass, easily accessible oil drain and innovative oil-trapping exhaust/demister allow technicians to make easier, more efficient service calls.

The pump's design includes a comfortable "no slip" grip for easy carrying and its solid construction delivers maximum durability. All this is backed by an industry-leading 2-year replacement warranty.

FEATURES & BENEFITS

• A2L Certified
• Gas ballast allows pumped water vapor to be exhausted to atmosphere instead of accumulating in the oil reservoir
• Fan directs airflow for maximum heat transfer, keeping pump cooler
• Anti-backflow on inlet prevents oil from flowing back to the system if there’s a power disruption
• Wide stance and solid base provides greater stability and less chance of the pump tipping over
• Tethered caps on oil drain and inlets so you won’t drop or lose them
• Two-stage rotary vane pump provides the ability to quickly pull a deep, 15 micron vacuum
• Thermally protected motor ensures safe operation
• Dual voltage operation
• 2-year replacement warranty
• Free air displacement: 5 cfm (142 l/m)
• Motor: 1/2 HP, AC
• Weight: 24 lb. (10.89 kg)
• Power Source: 115/230 V dual voltage operation

INCLUDES

• QS5 Vacuum Pump
• Power cord
• Vacuum pump oil

Specification
A2L Compatible Yes
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 30
Exterior Dimensions (D) (inches) 16.250000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 11.500000
Shipping Weight (lbs) 60.000000
