FEATURES

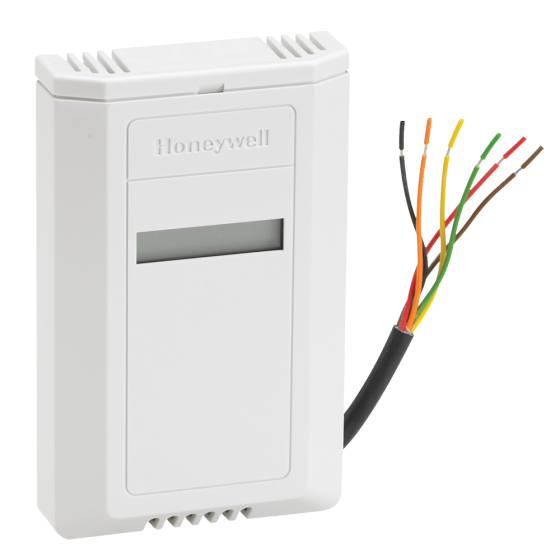

The 8002-WMDM is a stand-alone carbon dioxide (CO2) sensor for use in determining ventilation necessity with HVAC controllers. The 8002-WMDM measures the CO2 concentration in the ventilated space or duct. The 8002-WMDM is used in ventilation and air conditioning systems to control the amount of fresh outdoor air supplied to maintain acceptable levels of CO 2 in the space.
SPECIFICATIONS
Sensor Type• CO2 - Carbon Dioxide - Wall Mount Sensor
Composition
• Plastic Housing
UL Listed
Range
• 0 to 2000 ppm
Input Voltage
• 24 Vac
Output / Control Voltage
• 0-10 Vdc -- 0-20 mA
Operating Temperature
• 32°F to +122°F (0°C to +50°C)
Operating Humidity
• 0 to 95%
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 4.000000 |
