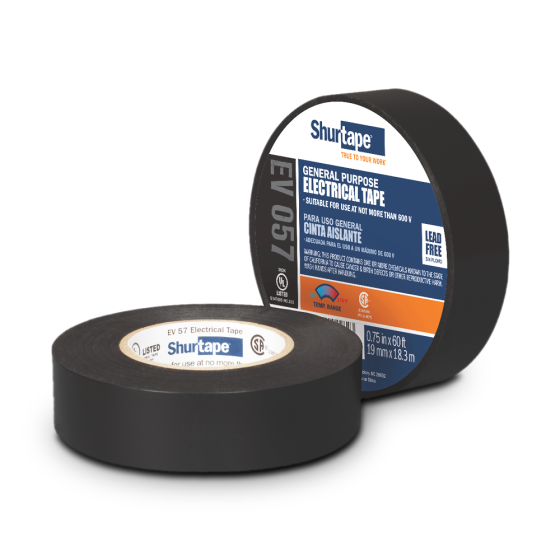

General purpose grade, 7.0 mil vinyl insulation tape for use in a variety of mechanical and electrical applications. UL Listed and CSA Approved, EV 57B is a highly conformable, lead free and flame retardant black electrical tape for use indoors and out.
FEATURES & BENEFITS
• For primary insulation of electrical splices up to 600 V • Can be used when wrapping wire harnesses and cables • For indoor and outdoor use • Highly conformable • Hand-tearable • Lead free • Flame retardant • Resistant to UV, oils, acids, alkalies, corrosive chemicals and water • Overall Grade/Function: General Purpose • Backing: Monomeric polyvinylchloride (PVC) • Adhesive: Non-corrosive, rubber-based • Tensile Strength: 16 lbs./in width 28 N/10 mm • Adhesion to Stainless Steel: 24 oz/in width 2.63 N/10 mm • Thickness: 7.0 mils 0.18 mm • Elongation: 250% 250% • Dielectric Strength: 1,300 V/mil 1,300 V/mil • Dielectric Breakdown: 9,100 V 9,100 V • Service Temperature Range: 32 F to 176 F 0 C to 80 C
