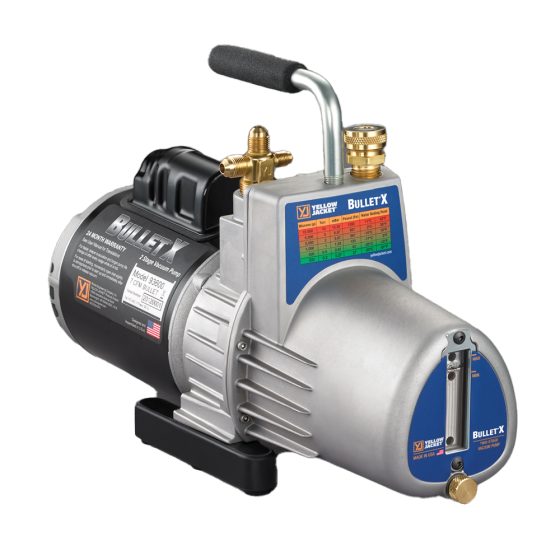

YellowJacket® Bullet®X 2-Stage Vacuum Pump 7CFM, 1/2 Horsepower

Item
93600
  • California Prop 65

APPLICATIONS

Wide mouth oil reservoir port for easier, cleaner filling. The YELLOW JACKET® BULLET®X vacuum pump is a two-stage rotary vane oil-sealed 7 CFM pump that pulls down to 25 microns or better.

FEATURES & BENEFITS

• Wide mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust; threaded to attach garden hose for exhausting to remote location
• Large oil sight glass for easy monitoring of oil level
• Large brass oil drain for easy access to fast oil changes
• Internal intake check valve prevents oil backup into the system during a power failure
• Intake filter screen keeps damaging particles from entering the pump
• Heavy-duty rotors and bearings
• Heavy-duty steel handle for well-balanced carrying
• Tethered port caps stay with the pump
• 24-month limited over-the-counter warranty
• Made in the USA
• Free air displacement: 7 CFM
• Number of stages: Two-stage rotary vane
• Field blankoff: 25 microns
• Intake: 1/4” x 3/8” x 3/8”
• Motor: 1/2” hp – 1725 rpm
• Thermal overload protection
• Voltage (single phase): 115V/60 Hz
• Power cord: 6’ – motor mounted switch
• Oil capacity: 7 CFM (28 oz./0.828 L)
• Dimensions: 16.25” L x 6” W x 11.5” H
• Net weight: 7 CFM (31.6 lbs./14.3 kg)

Specification
A2L Compatible No
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 38
Exterior Dimensions (D) (inches) 17.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 9.000000
Shipping Weight (lbs) 38.000000
