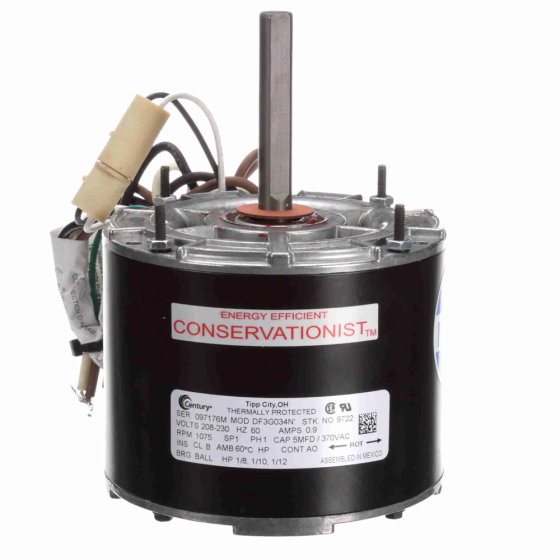

Century® Multi-Horsepower Condenser Fan Motor 1/12-1/8 HP,1075 RPM, 208/230Vac, 0.9A, 5µF/370Vac, 1 Speed, 60°C (PSC)

FEATURES & BENEFITS

• HP: 1/8, 1/10, 1/12 Hp
• Speed: 1075 rpm
• Number of Speeds: 1
• Voltage: 208-230Vac
• Capacitor Required: 5µF/370Vac (Not Supplied with Motor)
• Current: 0.9 A
• Output KW: 0.10 kW
• 60 Hz
• Single Phase
• Ambient Temperature: 60 °C
• Insulation Class: B
• Totally Enclosed
• Thermal Protection: Automatic
• UL Recognized
• CSA: Y
• CE: N
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC)
• Totally Enclosed Air Over
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 36" Leads
• Extend Studs Shaft End and Opposite Shaft End
