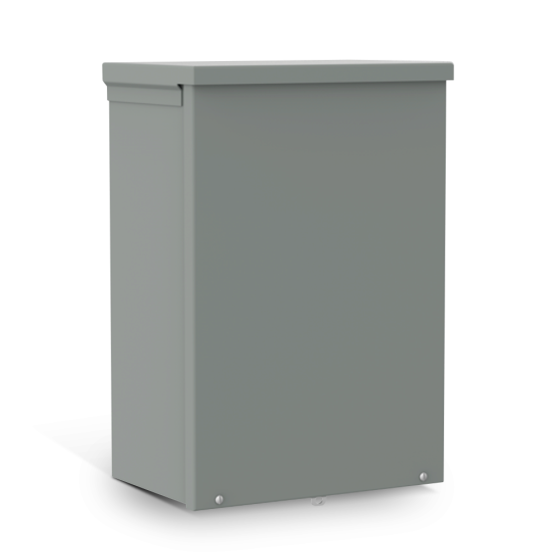

Hoffman Screw-Cover Drip-Shield Type 3R With Knockouts, 12" x 12" x 4" (Gray - Steel)

APPLICATIONS

Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water. Use this enclosure with or without knockouts in outdoor applications as a wiring or junction box.

FEATURES & BENEFITS

• Use this enclosure with or without knockouts in outdoor applications as a wiring or junction box.
• Drip shield top and seam-free sides, front and back
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Handles on larger sizes (see table)
• Embossed mounting holes on back of enclosure
• Knockouts in bottom of 16 and 14 gauge enclosures
• Provision for padlocking
• No gasketing
• ANSI 61 gray polyester powder paint finish inside and out over pretreated surfaces.
• UL 50, 50E Listed; Type 3R; File No. E27525
• cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
• NEMA/EEMAC Type 3R IEC 60529, IP32
