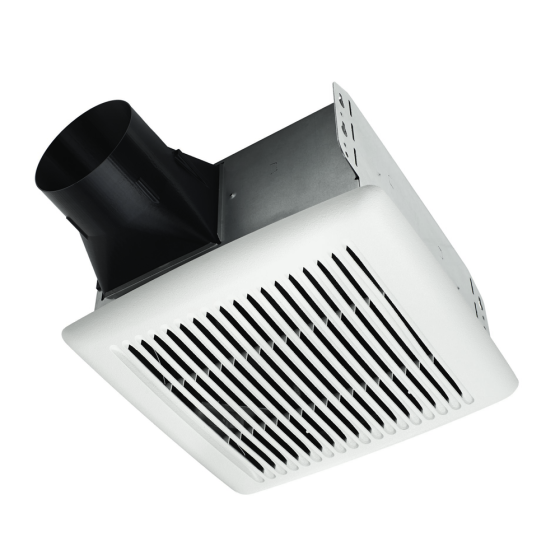

The Broan® Flex Series A80 Ceiling Exhaust Bath Fan offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This fan operates at 80 CFM and a quiet 2.0 sones.
FEATURES & BENEFITS
• 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths. • 2.0 Sones for Quiet performance, enough sound to know your fan is on (@ 0.1 SP). • TrueSeal™ Damper technology reduces air leakage up to 50% • EzDuct™ connector can be installed from the room side, with no attic access required • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only) • Corrosion resistant galvanized steel housing stands up to moisture • Permanently lubricated AC motor engineered for continuous operation • CFM (@ 0.1 SP): 80 • Duct Size: 4” Round • ENERGY STAR® certified: No • Grille Length: 11.5 • Grille Width: 12 • Housing Dimensions: 9-1/4" x 10" x 5-3/4" • Grille Finish: White • Humidity Sensing: No • Motion Sensing: No • Motor Engineered For Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: Yes • Recommended Room Size (Sq Ft): 75 • Rated Amps: 0.4 • Voltage Rating: 120 • Can Be Used To Comply With Title 24: No • Minimum Construction Space Required: 2" x 6" • Manufacturer Warranty: 1 Year • High Efficiency Luminaire: No
BLOWER: • Plug-in, permanently lubricated motor - engineered for continuous operation • Dynamically balanced centrifugal blower wheel for quiet, efficient performance • Low RPM for quiet operation
HOUSING: • Rugged, 26 gauge, galvanized steel construction • Polymeric, 4” duct connector with tapered sleeve and no metallic clatter • 5¾” height allows for 2” x 6” ceiling installations • Sturdy, easy, four-point mounting directly to joist • Can be mounted in ceilings up to 7/12 pitch • Can be installed in a wall if mounted 8-ft. or more above the floor
GRILLE: • Polymeric construction • Innovative design - the result of extensive research with designers and consumers
CONTROLS (Purchase separately): • Refer to Broan’s catalog for a complete line of accessories to effectively adapt these fans to your construction requirements.
