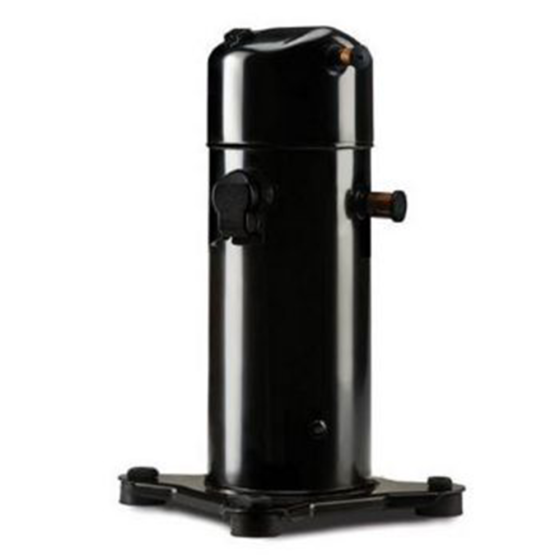

LG Hermetic Scroll Compressor R410A, 38,100BTU, 208/230Vac, Single Phase
Item
ABG038KAB
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 38,100
• Refrigerant: R410A
• Connection Type: Molded Plug (Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 70/370µF
• MCC: 24.4
• LRA: 105.5
• RLA: 15.6
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.61"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.51"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 15.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 36 to 40kBTU | Suction Line Height | 11.62" | Discharge Line Height | 15.50" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 38000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 74 | Exterior Dimensions (D) (inches) | 10.500000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 22.000000 | Shipping Weight (lbs) | 74.000000 |
| Warranty | |
|---|---|
| Country of Origin | Korea (North) |
