CPS® Airflow Meter

APPLICATIONS

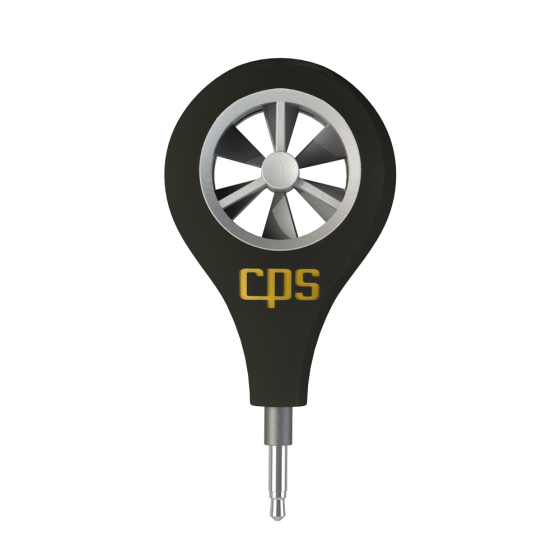

The ABM-100 is a compact, portable anemometer that captures air speed values from air supply or air return vents in residential or commercial buildings, and converts these values into air volume readings.

To provide airspeed and airflow readings, the ABM-100 plugs into a smartphone or other mobile device (see below) running the latest, free CPS Link™ app. Grille or duct dimensions are then entered using the smart device display, and the ABM-100 is held in front of a grille or duct opening. Data can then be viewed, stored in a history log, or emailed from the smart device.

For even faster, more convenient airflow analysis, attach the ABM-100 inside the ABM EasyHood (see below).In this mode, there is no need to calculate opening size, nor estimate the grille AK factor. Airflow volume is also faster to obtain since it isn’t necessary to move the meter across the grille.

FEATURES & BENEFITS

• Free CPS Link™ app provides on-screen guidance for fast, intuitive, easy-to-use airflow analysis:
Linear feet/minute
Cubic feet/minute
Linear meters/second
Cubic meters/hour
• Test And Balance Report- Automatically generated from data collected.
• Geolocation feature - to record where and when job performed
• Send professional jobsite reports by email
• Add custom notes to each reading if desired
• Ability to adjust the free space calculation (if grille is present).
• Select from 4 languages to work in (English, French, Spanish, German)
• Compatible with iPhone, iPad, iPod, and all major Android devices
• Operational temperature range -40°F to +185°F (-40°C to +85°C)
• Operational temperature range full accuracy -32°F to +149°F (0°C to +65°C)
• Power source Smart device
• Auto power off 30 seconds after minimizing app or no connection
• Air Volume Units (Selectable) CFM or M3/H
• Air Velocity Units (Selectable) LFM, LM/S
• Length/Width Units (Selectable) Inches or centimeters (for duct opening)
• Velocity Range 160 FPM to 11,000 FPM (1 m/s to 56 m/s)
• Velocity Accuracy +/- 0.5% of reading at up to 15° off-axis
• Resolution 1 FPM (0.1 M/S).
• CPS Link™ Patented modular test and measurement system technology (US Patent No. 9,043,161)
• Warranty 1 year
