Fieldpiece® Clamp Meter Accessory Head 400A

APPLICATIONS

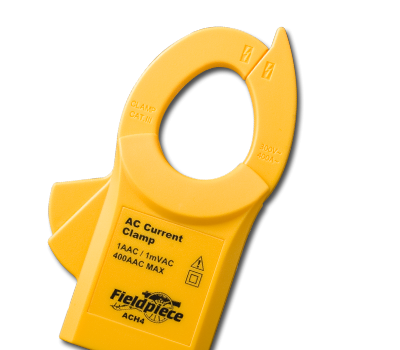

The ACH4 current clamp is a small size accessory head for quickly reading up to 400 AC amps. The claw feature on the clamp makes it easy to quickly pick out the wire you need to measure. Once the current carrying conductor is isolated, the amperage is converted to mVAC for reading directly on the meter. The ACH4 works with the Fieldpiece “Stick” meter, EHDL1 Electronic Handle, EH4W Wireless Handle, DL3 Data Logger, the HG2 and HG3 HVAC Guide® System Analyzers, or any other digital multimeter (with mVAC range) connected by Fieldpiece ADLS2 detachable silicone leads or AHDL1 handle adapter.

FEATURES & BENEFITS

• Connect directly to any Fieldpiece stick meter (shown attached to HS36)
• Remote the amp clamp for hard-to-reach areas using our deluxe silicone leads with detachable probe tips (model ADLS2)
• Angled jaw opens to 1.8 inches and makes singling out a wire fast and easy
• Current range: 1A AC to 400A AC rms
• Conversion rate: 1A AC to 1mV AC
• Frequency: 50Hz to 60Hz
• Operating temperature: 32°F to 122°F
• Storage temperature: -4°F to 140°F
• Temperature coefficient: 0.1 x (specified accuracy) per °F. (32°F to 64°F, 82°F to 122°F).
• Altitude: 6561.7 Feet (2000m).
• Resolution: 0.1A
• Accuracy: ±(1.5%rdg + 0.2A), 1 to 20A AC;
±(2.5%rdg + 0.3A), 20 to 100A AC;
±(3.5%rdg + 0.5A), 100 to 400A AC
• Maximum conductor diameter: 1.18 in. (30mm)
• Safety: Designed to meet IE C61010-1 (EN61010- 1) and IEC61010-2-032 (EN61010-2-032), 300V, class 2 and pollution degree II indoor use comply with CE
