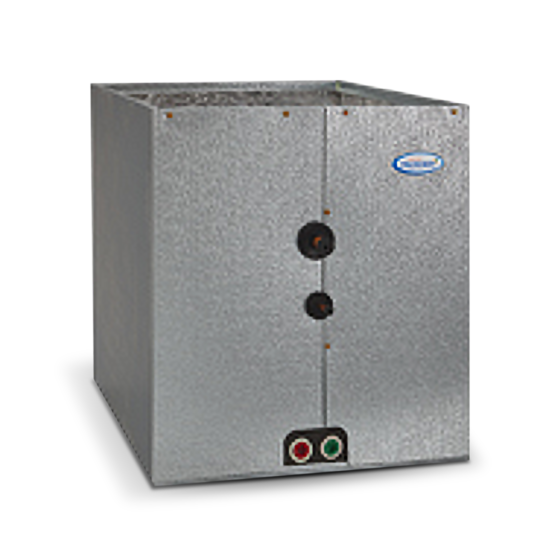

ADP A-Series Cased A-Coil Dedicated Downflow, Non-Bleed A/C-HP TXV

FEATURES

• High efficiency lanced fin design
• “No-hassle” 5 year warranty.
• R-22, R-410A, AC & Heat Pump compatible.
• All coils have durable packaging with bar coded labels on the box.
• Threaded expansion valves available factory installed or as a field installed kit.
• Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air.
• Piston options include externally accessible body for easy piston change out and/or TXV installation.
• Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan.
• UV resistant drain pans are molded of high temperature (450 deg. F) engineered polymer.
• Copper refrigerant connections for easy brazing on both copper and aluminum slab models.
• Cased coil cabinets are fully lined with 5/8" foil faced insulation.
• Non-captive refrigerant lines with long stubs make for easy installation.
• Enhanced refrigerant pipe grommets: secure, tight, and easy to install.
• Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV.
• Expansion valve with improved temperature sensing:
        1.) Mounted inside cabinet to prevent external sweating
        2.) Bulb clamped standard factory installed
• Cabinet insulation hold down tabs for easy drain pan removal.
• Interlocking doors reduce air leakage and allow for easy access.
• Foam drain seal for reduced air leakage.
• Maximum CFM printed on the label of each coil.
• Suction line refrigerant connections are 3/4" ODF (A-Coil 18-36 size models) or 7/8" ODF (A-Coil 42-60 size models)
• Suction line refrigerant connections are 1.125”.
• Corrosion resistant coil header plates.
