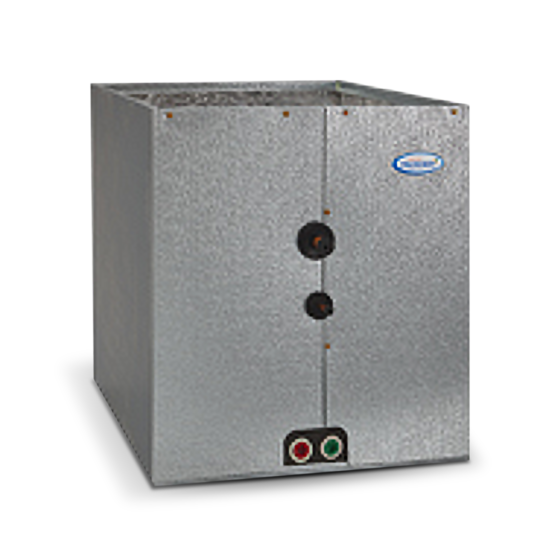

ADP Nominal 2 Ton, Dedicated Downflow 14" Wide, Aluminum Coil, Non-Bleed A/C-HP TXV

Item
A24VBAHXR14DN
  • California Prop 65

FEATURES

• High efficiency lanced fin design
• “No-hassle” 5 year warranty.
• R-22, R-410A, AC & Heat Pump compatible.
• All coils have durable packaging with bar coded labels on the box.
• Threaded expansion valves available factory installed or as a field installed kit.
• Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air.
• Piston options include externally accessible body for easy piston change out and/or TXV installation.
• Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan.
• UV resistant drain pans are molded of high temperature (450 deg. F) engineered polymer.
• Copper refrigerant connections for easy brazing on both copper and aluminum slab models.
• Cased coil cabinets are fully lined with 5/8" foil faced insulation.
• Non-captive refrigerant lines with long stubs make for easy installation.
• Enhanced refrigerant pipe grommets: secure, tight, and easy to install.
• Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV.
• Expansion valve with improved temperature sensing:
        1.) Mounted inside cabinet to prevent external sweating
        2.) Bulb clamped standard factory installed
• Cabinet insulation hold down tabs for easy drain pan removal.
• Interlocking doors reduce air leakage and allow for easy access.
• Foam drain seal for reduced air leakage.
• Maximum CFM printed on the label of each coil.
• Suction line refrigerant connections are 3/4" ODF (A-Coil 18-36 size models) or 7/8" ODF (A-Coil 42-60 size models)
• Suction line refrigerant connections are 1.125”.
• Corrosion resistant coil header plates.

Specification
Air Flow Configuration Downflow
Cased Yes
Coil Type Slab
Metering Device TXV
Refrigerant R-410A
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 29
Exterior Dimensions (D) (inches) 26.500000
Exterior Dimensions (W) (inches) 14.500000
Exterior Dimensions (H) (inches) 18.000000
Shipping Weight (lbs) 29.000000
