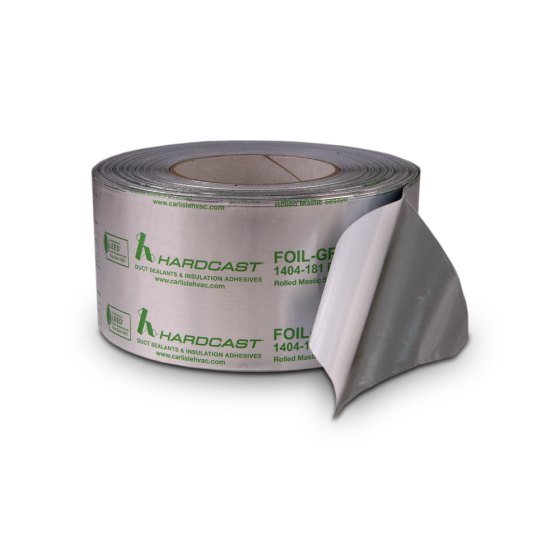

Foil-Grip 1404-181BFX is a UL 181B-FX listed pressures sensitive rolled mastic sealant. The Foil-Grip 1404-181BFX has superior tack for instant grab strength to galvanized metal, flex duct, PVC coated pipe, and PVC coated ductwork for an immediate airtight bond. The foil facer/butyl adhesive composite provides excellent UV resistance coupled with outstanding water resistance. The easy tear provides a fast installation for airtight seals on above and below grade ductwork application.
FEATURES & BENEFITS
• Color: Mil Finish Aluminum Printed With Gray Butyl Sealant Backing Visual 2 mil Aluminum • Thickness: ASTM D3652 17 mils nominal • Peel Strength ASTM D3330-83 >10 lbs./linear inch • Tensile Strength ASTM D412 20 pli/1400 psi avg. • Elongation ASTM D412 560% • Flexibility: ASTM C765 Excellent/No Cracking • Water Resistance: CSTM. RA 8.0 Pass • VOC: EPA Method # 2 0 g/l • Flame/Smoke ASTM E84/UL 723 5/25 • Service Temperature ASTM D2485/D2243 -20°F to 200°F (-28.8°C to 93.3°C) • Pressure Test: Independent 24 Hour Test up to 5/8-inch Diameter 30 inch w.c. • Weather Resistance: ASTM G53 Passes 2,000 QUV • Bond Time: Immediate/Full Bond: 15 Minutes • UL 181B-FX: UL 181 tested Passes/Listed • NFPA 90A & 90B Class 1
