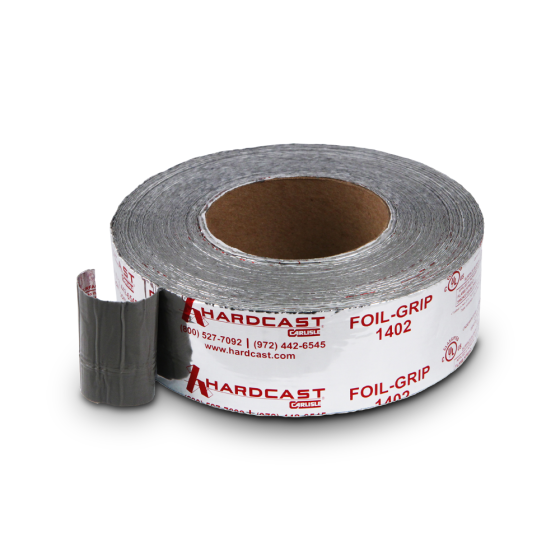

Hardcast® Foil-Grip™ 1402 Indoor/Outdoor Rolled Mastic Sealant Tape 3", 33 Yards, 17 mil (Aluminum)

APPLICATIONS

Foil-Grip 1402 is a pressure-sensitive, 40-year cycle, duct joint and general purpose rolled mastic sealant. It provides an instant water-resistant air-tight grip to most surfaces including sheet metal, flex duct, and PVC-coated duct. Foil-Grip 1402 is suitable for subgrade application on PVC-coated duct and is ideal for replacement applications.

FEATURES & BENEFITS

• Instant Adhesion
• Indoor/Outdoor
• True Zero VOC
• Metal & Subgrade PVC Ductwork
• All Pressure Classes Up To 20 inches W.C.
• Color: Mil Finish Aluminum Printed/Non-Printed With Gray Butyl Sealant
• Backing: 2 mils Aluminum
• Thickness: ASTM D3652 17 mils nominal
• Peel Strength: ASTM D3330-83 >10 lbs./linear inch
• Tensile Strength: ASTM D412 955 psi avg.
• Elongation: ASTM D412 500%
• Flexibility: ASTM C765 Excellent/No Cracking
• Water Resistance: CSTM. RA 8.0 Pass
• VOC: EPA Method # 2 0 g/l
• Flame: ASTM E84/UL 723 20
• Smoke ASTM E84/UL 723 40
• Service Temperature: ASTM D2485/D2243 -20°F to 200°F (-28.8°C to 93.3°C)
• Pressure Test: Independent 24 Hour Test up to 5/8-inch Diameter 20 inch w.c.
• Weather Resistance: ASTM G53 Passes 2,000 QUV
• Bond Time: Immediate/Full Bond - 15 Minutes
• UL Rating: UL 723 Passes/Classified
• VOC Limitation: SCAQMD Rule 1168 Pass
• NFPA: 90A & 90B Class 1
