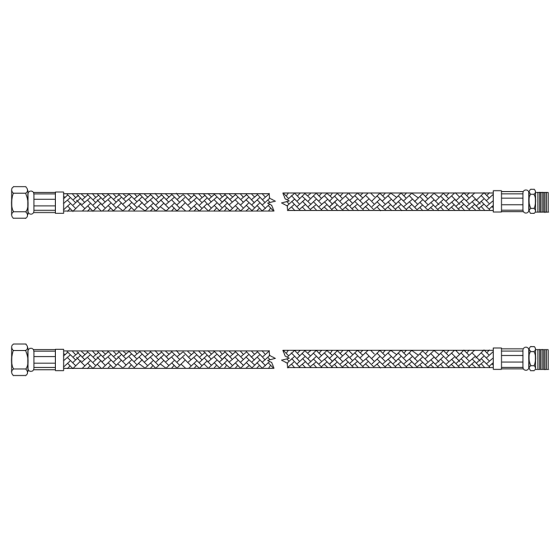

Water Source Heat Pump Hose Kit, 3/4" Diameter, 24" Long, (Supply and Return)

FEATURES

Carrier's Aquazone hose kits combine high quality and reliable operation to facilitate installation and individual balancing for Aquazone water source heat pump (WSHP) units.

Kits are pre-assembled based on the physical water piping connections and design flow rate for individual units. All hose kits include braided stainless-steel, fire-retardant hoses. Thermoplastic tube, bonded to the stainless-steel braided hose, prevents kinking during installation.

Kits are shipped in pairs to streamline matching of kits for individual units. Stainless steel hose construction accommodates all boiler/tower and geothermal applications, providing maximum corrosion protection and structural integrity.

This hose kit provides a flexible connection of the WSHP to the loop water piping.

• Reinforced EPDM (ethylene propylene diene monomer rubber) hose core, stainless steel hose braid, and brass OT58 fittings.
• Swivel connection female ends provides a union between WSHP and the hose kit.
• Two NPSH (hose end) to MNPT (WSHP end) adapters provided and installed on each hose kit.

SPECIFICATIONS

• Connection Diameter (in.): 3/4”

Kit Connection Type
• WSHP Side: Swivel Male NPT Threads (Includes Factory Installed NPSH to MNPT Male Adapter)
• Water Loop Side: Solid Male NPT Threads

• Hose Length (in.): 24”
• Temperature Range (°F): 5 to 248
• Max Working Pressure (psi): 400
• Min. Bend Radius (in.): 3-9/16”
• Cv (Constant Volume): 12.8
