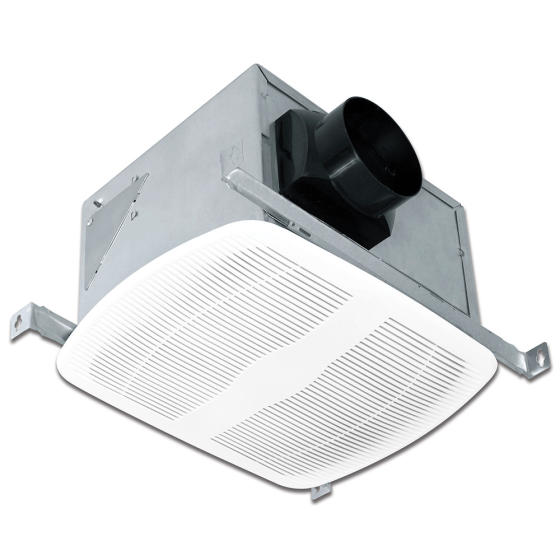

Air King® ENERGY STAR® Certified Humidity Sensing Ventilation Fan 4 in. Round Duct, 80CFM, 1.0 Sones, 120Vac

APPLICATIONS

The Air King® AK80H ENERGY STAR® Certified Humidity Sensing Ventilation Fan provides barely audible sound levels with automated efficient and effective ventilation.

FEATURES & BENEFITS

• Can be used to comply with the ventilation standards required by LEED for Homes
• Integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity.
• The humidity sensing Ventilation Fans easily install using the included adjustable hanging brackets.
• UL listed for installation over a tub or shower on a GFCI circuit.
• 4″ round plastic damper protects against backdrafts and ensures quiet operation.
• HVI Certified performance.
• CFM @ .1 SP: 80
• Sones @ .1 SP: 1.0
• Speed (CFM/Sones) @ .1 SP: 80 / 1.0
• Sound Level: Very Quiet
• Maximum Power Watts: 28.1
• Effective Ventilation Area: 80 – 100 sq. ft.
• ASHRAE 62.2 Ventilation: Whole House
• ENERGY STAR® certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Compliant for use in bathrooms or whole building ventilation
• Duct Size: 4″ round
• Collar / Damper: Metal
• Mounting: Hanger Bars
• Housing: Metal
• Grille: White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions - 11" x 13-3/4 ".
• Blower Wheel: One piece polymeric centrifugal blower wheel, 5-7/32" diameter, 2-29/32" wide, with 30 paddles.
• Motor: Heavy duty, permanently split capacitor, plug-in, 4 pole motor, life time lubrication, suitable for continuous operation.
• Voltage Rating: 120 volts, 60 hz.
• Fan Housing: 23 gauge galvanized steel housing.
• Dimensions: 10-7/8" x 9-3/8"x 7-7/8 ".
• Humidity Sensor: Integrated humidity sensor automatically turns fan on until the desired humidity level is reached. Humidity set points up to 80%.
• Duct Collar: Plastic collar for 4" duct connection, comes complete with built in non-metallic back draft damper for quiet operation.
• Ventilating Area: For bathrooms up to 80 sq. ft. For other rooms up to 100 sq. ft.
• Electrical Connections: 1/2 " electrical knockouts provided. Easy wiring access via either internal or external wiring compartment cover.
• Single Pack Shipping Info
• Unit Mounting: The housing will mount in ceilings with at least 8" of clearance and through drywall thickness up to 3/4 ", with a rough-in opening of 11" x 9-1/2". The housing will mount either between 16" or 24" on center joists, using the 4 supplied housing mounting rails. The housing mounting rails can be adapted for overhead mounting (hardware not provided).

INCLUDES

• Ventilation Fan Housing with Integrated Humidistat
• Blower (motor)
• Hanger Bars for Mounting
• Damper and Duct Collar
• Grille
• User Manual
