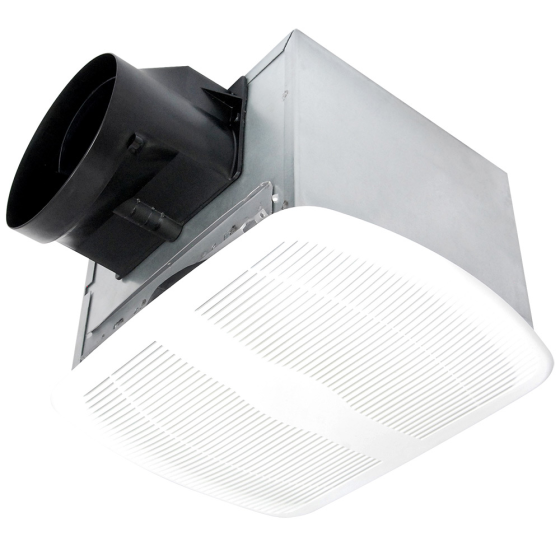

Air King® ENERGY STAR® Certified Deluxe Quiet Ventilation Fan 6 in. Round Duct, 80CFM, 0.5 Sones, 120Vac

APPLICATIONS

The Air King® AK80LS6 ENERGY STAR® Certified Deluxe Quiet Ventilation Fan solution provides a quiet ventilation solution for your bathroom, laundry room or other areas of the home needing ventilation.

FEATURES & BENEFITS

• Can be used to comply with the ventilation standards required by LEED for Homes
• UL listed for installation over a tub or shower on a GFCI circuit.
• Side access panel allows you to wire the fan from inside or outside the housing.
• HVI Certified performance.
• CFM @ .1 SP: 80
• Sones @ .1 SP: 0.5
• Sound Level: Very Quiet
• Watts: 25.2
• Effective Ventilation Area: 80 to 100 sq. ft.
• ASHRAE 62.2 Ventilation: Whole House/ Local
• ENERGY STAR® certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Rooms other than bathrooms
• Duct Size: 6″ round
• Collar / Damper: Plastic
• Mounting: Hanger Bars
• Housing: Metal
• Grille: White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions - 11" x 13-3/4 ".
• Blower Wheel: Balanced polymeric dual inlet blower wheel 5-13/32 " dia. x 4" depth, 30 paddles, secured in place using 8M hex nut.
• Motor: Enclosed 4 pole electronically balanced permanently split capacitor motor (PSC); life time lubrication, suitable for continuous operation.
• Motor Bearings: Ball.
• Voltage Rating: 115/120 volts, 60 Hz.
• Fan Housing: 23 gauge galvanized steel housing.
• Overall dimensions: 10-7/8" x 9-3/8" x 7-7/8".
• Duct Collar: Plastic collar for 6" duct connection, comes complete with built in non-metallic back draft damper for quiet operation.
• Ventilating Area: For bathrooms up to 80 sq. ft. For other rooms up to 100 sq. ft.
• Electrical Connections: 1/2 " electrical knockouts provided. Easy wiring access via either internal or external wiring compartment cover.
• Single Pack Shipping Info
• Unit Mounting: The housing will mount in ceilings with at least 8" of clearance and through drywall thickness up to 3/4 ", with a rough-in opening of 11" x 9-1/2". The housing will mount either between 16" or 24" on center joists, using the 4 supplied housing mounting rails. The housing mounting rails can be adapted for overhead mounting (hardware not provided).

INCLUDES

• Ventilation Fan Housing
• Blower (motor)
• Hanger Bars for Mounting
• Damper and Duct Collar
• Grille
• User Manual
