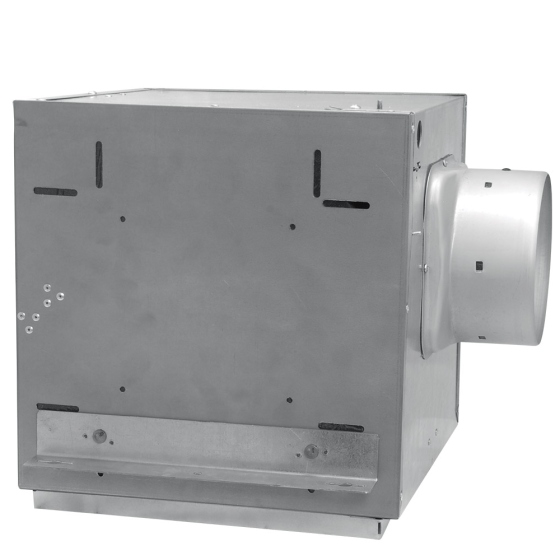

Air King® Commercial Inline Ventilation Fan 6 in. Round Duct, 210CFM, 120Vac
APPLICATIONS
The Air King® AKZA200 Commercial Inline Ventilation Fan provides proper ventilation for larger areas such as conference rooms, locker rooms, commercial bathrooms, and other larger areas. The high-volume series is available in multiple CFM levels to meet your ventilation needs.
FEATURES & BENEFITS
• Commercial inline Ventilation Fans can be adapted for top discharge mounting, straight through inline or right angle inline (hardware not included).
• Insulated housing with motors & blowers mounted on vibration isolators.
• Convertible to 6″ round inlet with model IA613R adapter (available separately)
• Unit mounts with the 2 supplied housing mounting angles that can be adapted for inline or top discharge mounting (hardware not provided).
• Easy wiring access via either internal or external wiring compartment cover.
• CFM @ .2 SP: 210
• ENERGY STAR® certified: Yes
• Duct Size: 6″
• Collar / Damper: Metal
• Inlet Opening: 10-9/16″ x 10-11/16″
• Option 6″ Inlet Adapter: IA613R
• Mounting: Mounting angles
• Housing: 23 gauge metal
• Insulation: 1″ thermal and acoustical
• Blower Wheel: Balanced polymeric dual inlet blower wheel secured in place using a hex nut.
• Motor: Enclosed 4 pole high efficiency, permanently split capacitor motor (PSC); life time lubrication, suitable for continuous operation.
• Motor Bearings: Sleeve
• Voltage Rating: 115/120 volts, 60 Hz.
• Fan Housing: 23 gauge galvanized steel housing with 1" thermal & acoustical insulation and a removable bottom access panel for servicing.
• Overall dimensions: 12-11/16"W x 13-1/16"D x 12-9/16" H.
• Duct Collar: 6" round, zinc plated metal collar adapter. Gasketed, spring loaded aluminum backdraft damper.
• Electrical Connections: 0.5" electrical knockouts provided. Easy wiring access via either internal or external wiring compartment cover.
INCLUDES
• Ventilation Fan Housing
• Blower (motor)
• Mounting Angles
• Damper and Duct Collar
• User Manual
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 18 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 14.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 18.000000 |
Specification | |
---|---|
CFM | 210 |
