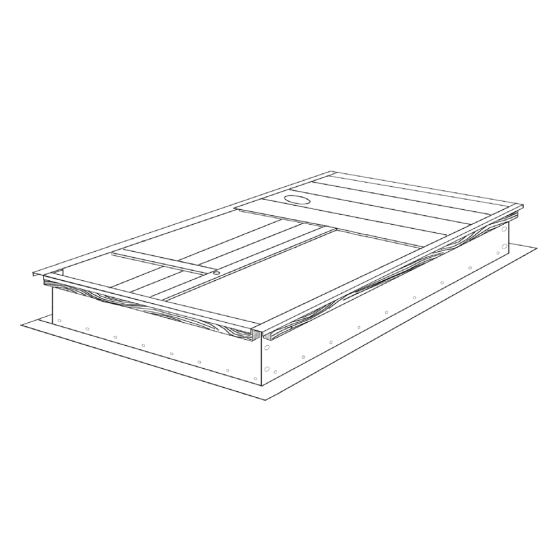

Micrometl Roof Curb, 14" Tall, Knockdown, Adjustable Pitch, Insulated Deck Pan
Item
AP597-014-00010
FEATURES
Adjustable pitch/height curb
This a multi-use curb, non insulated, full perimeter, insulated deck pan if applicable. When using as an adjustable pitch curb... 14 inches minimum height, up to 1 in 12 inches in any direction. Warning: do not use in adjustable pitch mode with a concentric kit... the curb insert interferes with the inside section.
SPECIFICATIONS
• Weight: 151lbs/68.49kg• Assembled Length O.D.: 81.75
• Assembled Width O.D.: 53.50
• Adjustable Pitch Height: 14 Inches Minimum
• Maximum Pitch: Up To 1 In 12 Inches In Any Direction
• Maximum Adjustable Height: Up To 1 In 12 Inches In Any Direction
• Composition: Galvanized Metal
• Insulated: Non Insulated
• Perimeter: Full Perimeter
• Base Perimeter Gauge: 16
• Upper Perimeter Gauge: 16
• Support Gauge: 20
• Deck pan: Included
• Deck pan Gauge: 20
• Deck pan Description: Galvanized Metal, Using 1 Inch Insulation, R Value 4.2
• Gasket: 9430-0100, 9430-0200
• Gasket Description: 0.25 X 1.5 Inch Multipurpose Medium Density Foam Gasket.
| Specification | |
|---|---|
| Adjustable Pitch | Yes | Curb Height | 14" | Structurally Calculated | No | Structure | Knockdown |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 151 | Exterior Dimensions (D) (inches) | 81.750000 | Exterior Dimensions (W) (inches) | 53.500000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 151.000000 |
