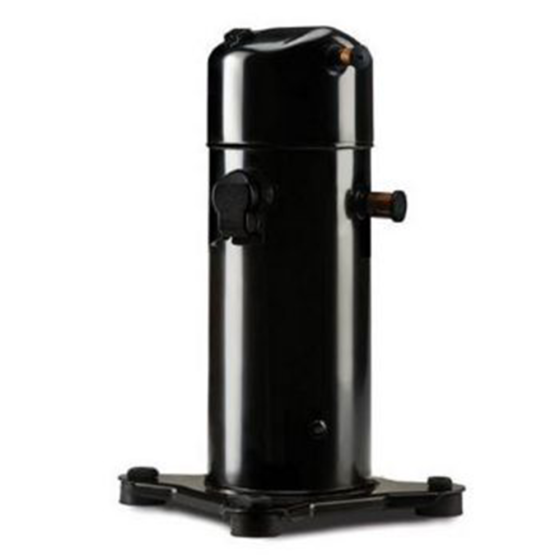

LG Hermetic Scroll Compressor R410A, 30,800BTU, 208/230Vac, Single Phase
Item
APG031KAB
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 30,800
• Refrigerant: R410A
• Connection Type: Molded Plug (Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 45/370µF
• MCC: 22.9
• LRA: 75
• RLA: 14.7
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.35"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.25"
| Electrical | |
|---|---|
| Hertz | 60 | LRA | 75 | Phase | 1 | RLA | 14.7 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 26 to 30kBTU | Oil | POE (Polyester) | Suction Line Height | 10.37" | Discharge Line Height | 14.26" | Discharge Line Size | 1/2" | BTU Output | 31000 | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 55 | Exterior Dimensions (D) (inches) | 10.500000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 22.000000 | Shipping Weight (lbs) | 55.000000 |
| Warranty | |
|---|---|
| Country of Origin | Switzerland |
