AprilAire® Zoned Comfort Control™ 3-Zone Panel Kit (2H/2C Conventional & 4H/2C Heat Pump)

FEATURES

Intuitive Design
Visual indicators and clear terminal designations allow installers to easily understand how to wire and set up the system with minimal training

Wiring Simplicity
Push terminals for quick connections
Wire openings on back and side provide simple organization and tracking of wires to each zone (dampers and thermostat)

Visible Terminal Designations
Large, easy-to-see terminal designations
Zones delineated with color, clearly indicating damper and thermostat combinations

• 2 Heat 2 Cool or
• 4 Heat 2 Cool (Heat Pump)
• Compatible with Model 8056 wireless outdoor temperature and RH sensor
• Controls high and low balance point from one outdoor sensor
• Time delay override to simplify check out and troubleshooting
• Resettable fuses for each zone’s dampers
• Multiple mounting and wire run options
• Short cycle protection
• Built-in fan purge
• Five-year warranty

SPECIFICATIONS

• Overall Dimensions: 817/20" W x 1418/25" H x 143/50" D
• Humidity: 5% - 90% RH, non-condensing
• Operating Temperature: 32°F - 158°F
• Shipping Temperature: -40°F - 165°F
• Voltage: 18-30VAC 50/60 Hz
• Maximum Current Damper output per zone (fused): 18VA at 158°F, 30VA at 90°F zone panel and thermostats (fused): 18VA at 158°F, 30VA at 90°F zone panel consumption: 4VA max
• Note: Use 18 or 20 AWG solid (non-stranded) wire

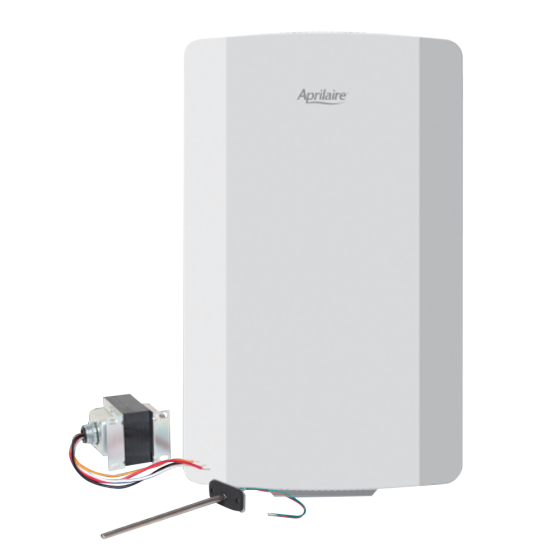

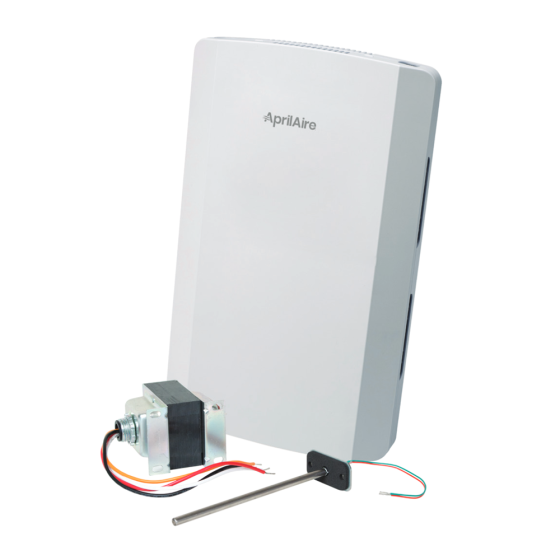

INCLUDES

• Zone Panel
• 6" Duct Probe
• 24V 40VA Universal Transformer
