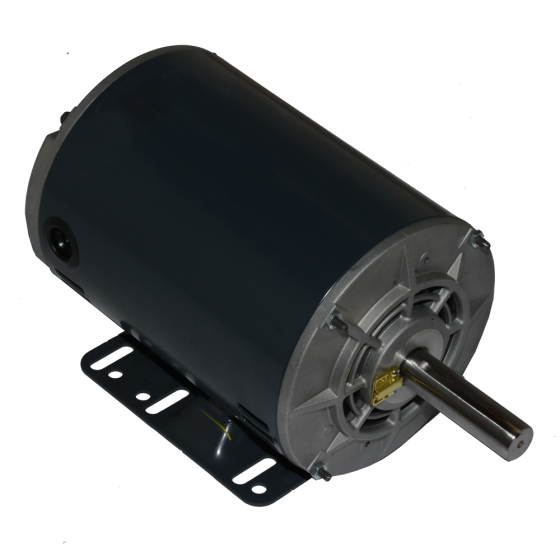

Belt Drive Blower Motor 1725RPM, 208/230/460Vac, 6.0/3.0A, 40 °C
Item
HD58FE654
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• RPM: 1725
• Rotation: Reversible
• Voltage: 208/230/460Vac
• Amperage: 6.0/3.0
• 3 Phase
• Hz: 60
• NEMA Frame Size: 56HZ
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: A
• Ambient Temperature: 40 °C
| Specification | |
|---|---|
| Motor Frame | 56HZ | RPM | 1725 |
| Electrical | |
|---|---|
| Amps | 6 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 37 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 37.000000 |
