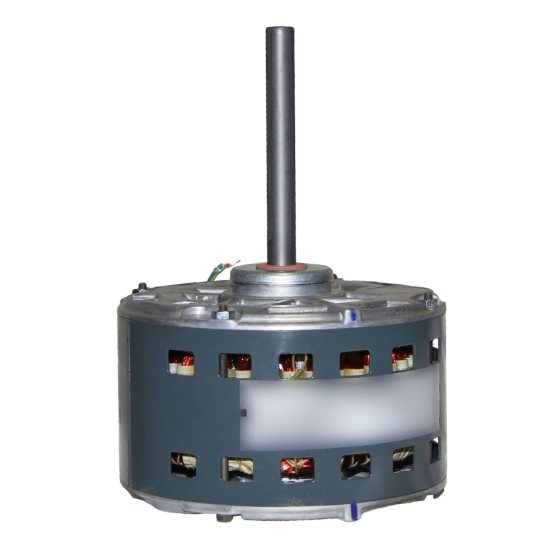

Direct Drive Blower Motor 1/8HP, 1030/800RPM, 265Vac, 1.10A, 5µF/370Vac, 2 Speed, (PSC)
Item
HC35AB265
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/8
• RPM: 1030/800
• Number of Speeds: 2
• Rotation: Counter-Clockwise (Lead End)
• Voltage:
• Amperage: 1.10
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
SUPERSEDES FROM
• HC33AE265
| Specification | |
|---|---|
| Motor HP | 1/8 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 1030 |
| Electrical | |
|---|---|
| Amps | 1.1 | Hertz | 60 | Voltage | 265 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 14 | Exterior Dimensions (D) (inches) | 6.200000 | Exterior Dimensions (W) (inches) | 7.950000 | Exterior Dimensions (H) (inches) | 6.400000 | Shipping Weight (lbs) | 14.000000 |
