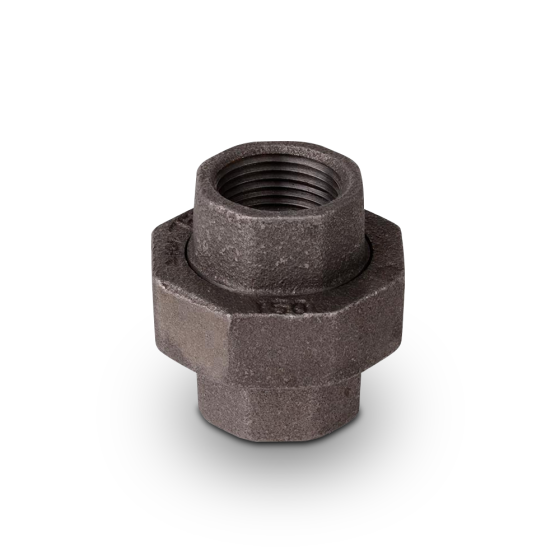

BPF-32 Black Iron Pipe Union 3/4" FIP (cl150 - Sch40)
Item
BPF-32
FEATURES & BENEFITS
• The Union fitting is made of ASTM A 197 Cupola Malleable Iron, 150 LB. The dimensions for this fitting are ANSI B 16.39. The threads are ANSI V 2.1 or BS 21 and the tensile strength is 28.4 kg/mm.min for this fitting.| Specification | |
|---|---|
| Fitting Type | Unions | Fitting Size | 3/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | .2 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 0.200000 |
