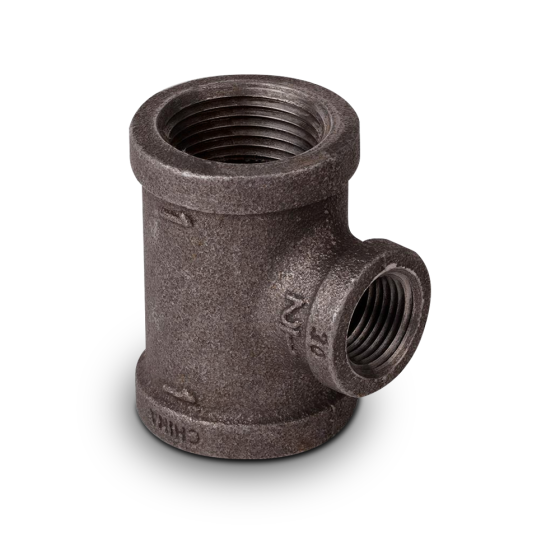

BPF-34 Black Iron Pipe Tee 1" FIP x 1" FIP x 1/2" FIP (cl150 - Sch40)
Item
BPF-34
FEATURES & BENEFITS
• The Tee fitting is made of ASTM A 197 Cupola Malleable Iron, 150 LB. The dimensions for this fitting are ANSI B 16.3. The threads are ANSI V 2.1 or BS 21 and the tensile strength is 28.4 kg/mm.min for this fitting.| Specification | |
|---|---|
| Fitting Type | Tees | Fitting Size | 1" x 1" x 1/2" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | .4 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 1.500000 | Shipping Weight (lbs) | 0.400000 |
