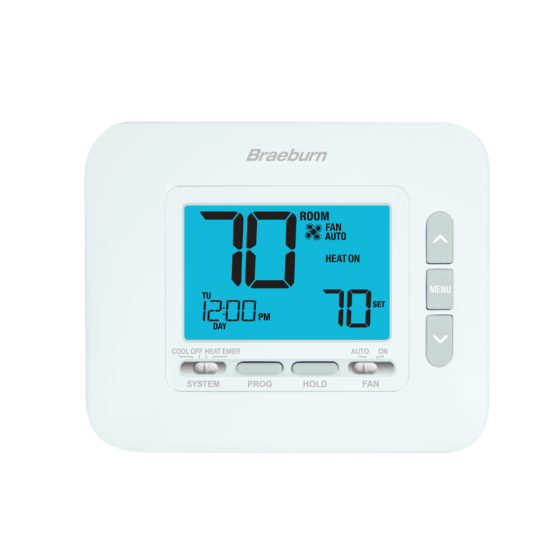

Braeburn® 7/5+2 Day Programmable Thermostat 2H/1C, 24Vac/3Vdc (2 AA)
Item
2230B
FEATURES
• Compatibility: Conventional, Heat Pump• Staging: 2 Heat / 1 Cool
• Display Size: 4.4 Sq. In.
• Programming: 7 Day, 5-2 Day, or Non-Programmable
• Power: Battery, Hardwire
• Terminations: Rc, Rh, E/W1, W2, Y1, G, O, B, L, C
• Commercial Mode: No
• Backlight: Bright Blue
• Keypad Lockout: No
• Auto Changeover: No
• Adj. Temp. Limits: Yes - With Installer Lock
• Remote Sensors: No
• Programmable Fan: No
• Circulating Fan: No
• Humidity Control: No
• Dry Contact Input: No
• Fresh Air Terminal: No
• Warranty: 5 Year
| Specification | |
|---|---|
| Stages (Conventional) | 2 Heat, 1 Cool | Stages (Heat Pump) | 2 Heat, 1 Cool | Power Method | Hardwire (24Vac)/Battery (3Vdc) | Program Options (Days) | 7, 5+2 | Display Size | 4.4 sq. in. | WiFi Capability | No | Temporary Hold | Yes | Permanent Hold | Yes | Millivolt Compatible | Yes | Touchscreen | No | Battery Backup | Yes | Filter Indicator | Yes | Humidification Controls | No | Key Pad Lockout | No | Remote Sensing Capability | No |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 2.000000 |
