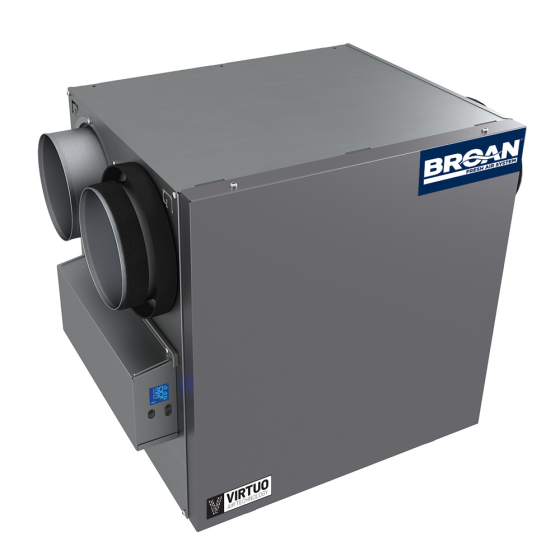

Broan® AI Series™ Energy Recovery Ventilator 6 in. Round Ducts, 160CFM, 120Vac

Item
B160E65RS
  • California Prop 65

APPLICATIONS

A healthy home starts with fresh air. The Broan AI series is the most advanced residential fresh air system on the market. This unit features our VIRTUO™ Air Technology which is specifically designed to provide fresh air in any season and in any installation situation. Easy installation combined with auto-balancing means fresh, filtered, comfortable air without the need for specialized measurement tools or added install time.

FEATURES & BENEFITS

• Type: Crossflow
• Voltage: 120Vac
• Amps: 2.5
• Watts: 163
• Anti-freeze Setting (Approved for Unheated Space): No
• Automatic Shutoff: No
• Built-In Timer: No
• cETL Listed: No
• CSA Listed: No
• cUL Listed: Yes
• ETL Listed: No
• Humidity Sensing: No
• HVI Certified: Yes
• UL Listed: Yes
• Airflow (CFM): 160
• Apparent sensible efficiency at 32°F: 72% (64 CFM)
• Filtration Level: MERV 8
• Ports Location: Side
• Ports Size: 6" Round
• Sensible recovery efficiency at -13°F: 56% (64 CFM)
• Sensible recovery efficiency at 32°F: 67% (64 CFM)
• Core Warranty: 5 years
• Parts Warranty: 5 Years
• Product Length: 16.14
• Product Width: 23.78
• Product Height: 19.12
• ENERGY STAR® certified: No
• High Efficiency Luminaire: No
• By continuously monitoring changing indoor and outdoor conditions, the AI Series with VIRTUO™ Air Technology, provides fresh, filtered and healthy air throughout the home.
• MERV 8 filters are installed standard. Capturing lint, dust, pollen, dust mites, debris and spores for superior air quality and comfort. Even more powerful filtration is available with an optional MERV 13 filter upgrade.
• Powerful, reliable and quiet PMSM ECM fan motors provide up to 60% energy savings compared to other units on the market.
• Developed on a compact, universal platform with several mounting and port options to save space and reduce install time.
• With a selectable airflow speed range from 35 – 160 CFM, this AI Series model will meet the needs of a medium-large size home.
• Unit setup, balancing and diagnostics are made easy with complete control using the integrated LCD screen providing real-time airflow measurements, automatic system balancing and simple diagnostic codes.
• Can be used to comply with California Title 24, Part 6 Fault Indicator Display Requirements when paired with any of these Broan main controls: VTTOUCHW, VAUTOW, VTSPEEDW, VTDEHUMW.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 44
Exterior Dimensions (D) (inches) 16.000000
Exterior Dimensions (W) (inches) 24.000000
Exterior Dimensions (H) (inches) 19.000000
Shipping Weight (lbs) 44.000000
Specification
CFM 160
