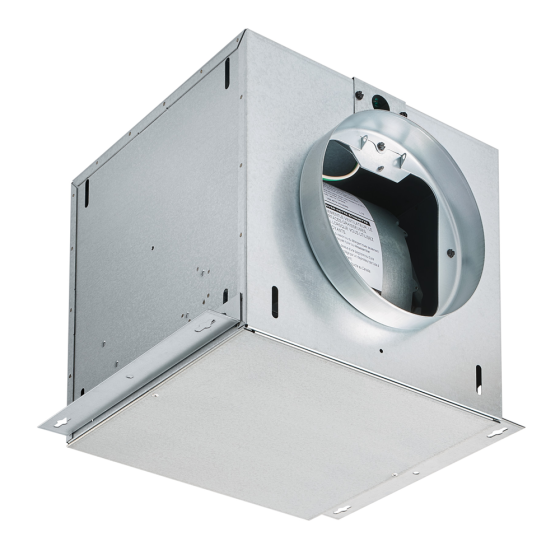

Broan® ENERGY STAR® Certified High-Capacity In-Line Ventilation Fan 8 in. Round Duct, 100CFM, 120Vac

FEATURES

Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high-capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.

• 106 CFM InLine commercial ventilation fan
• Includes 8-way adjustable mounting brackets for easy installation
• Suitable for use in the kitchen
• Standard 8" round ducting for all ENERGY STAR® certified models
• ENERGY STAR® certified
• AMCA and HVI air tested
• Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
• Model 80L Variable speed control adjusts blower speed and sound level (available separately)
• cULus Listed for safety and protection

SPECIFICATIONS

• CFM: 106
• Duct Size: 8
• ENERGY STAR® certified: Yes
• Housing Dimensions: 12.25” x 12.25” x 11.75”
• Sound Level (Sones): 0
• UL Listed: Yes
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: No
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Rated Amps: 0.3
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Manufacturer Warranty: 1 Year
• High Efficiency Luminaire: No

BLOWER
• Low RPM for quiet operation
• Resilient anti-vibration mounts
• Dynamically-balanced, centrifugal blower wheel for quiet, efficient performance
• Permanently lubricated, thermally protected motor
• Plug-in motor rated at 120 VAC
• Designed for continuous operation

HOUSING
• Not intended for use in cooking area, see instruction sheet for details
• Rugged, 20 gauge galvanized steel
• 8” round duct connector
• 1/2” acoustic insulation inside
• May be installed in ceiling or wall (size permitting)
• 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements
• Automatic backdraft damper located within duct connector
