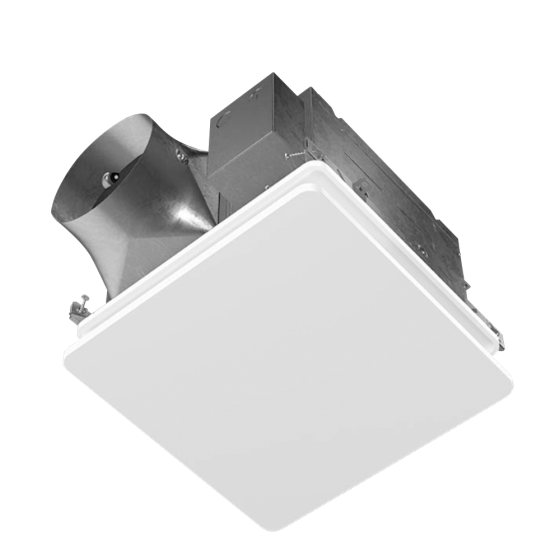

Broan-NuTone® Evolve Premium ENERGY STAR® Certified Exhaust Fan with 6" Round Duct, 110-150CFM, 0.6 Sones, 120Vac

FEATURES

The Evolve Premium exhaust fan by Broan-NuTone is revolutionizing bathroom ventilation. This selectable CFM premium series features motor technology making it the only exhaust fan on the market that can guarantee airflow performance, no matter how complicated the ductwork, reducing call-backs. The premium series saves the installer time with the easy, slide-and-lock installation, reducing installation time by more than 30%. The premium series provides best-in-class features and code compliance without the complex assortment thanks to the universal housing with modularity. This series will be the only modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing. Selectable CFM available in 50-80-110 and 110-130-150 along with modularity allows for install of the perfect ventilation solution with reduced inventory.

• TRUECFM™: Guaranteed Performance no matter how complicated the ductwork. Selectable CFM with speeds of 110-130-150, maintains CFM through 0.4" static pressure.
• Near Silent Operation
• Save Up to 30% on Installation Time: Easy snap-in housing to hanger bar and slide-and-lock blower attachment.
• Seamless Design: Blends into the ceiling with CleanCover™ grille and floating mounted positioning.
• Slide-Clip™ Grille/Cover: Fast grille attachment for easy maintenance without the hassle of springs.
• Code Compliance: Continuous run capability preferred for meeting ENERGY STAR®, ASHRAE 62.2 and LEED whole home ventilation requirements.
• Modularity: only modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing.
• Mounting Frame allows for positioning housing anywhere on center joists
• 5-Year Warranty with award winning customer service.

Motor and Control Technology
Resin-based DC internal rotor motor provides higher efficiency and low noise levels
Selectable CFM setting of 50-80-110 CFM or 110-130-150 CFM
Continuous run capability ideal for meeting ASHRAE 62.2, LEED and ENERGY STAR® for whole home ventilation requirements. Can be used to comply with CA Title 24, as well as local/spot ventilation needs
Infinitely precise adjustable low CFM setting to prevent over-ventilating and maximize efficiency
TrueCFM™ maintains CFM at actual installation conditions, through 0.4" static pressure
Blower assembly removable and has a centrifugal blower wheel

Housing
No rust - 21 gauge galvanized steel housing
6" metal duct connector for 110-130-150 CFM models
Duct connector and electrical wiring box mounting from inside of the housing provides room side capable install
7-1/8" height allows for 2" x 8" ceiling installations
Two-point vertical drive, two-point angled drive
Telescoping (14" to 24") mounting frame for easy room side (no attic access required) installation
Easy snap-in feature to attach housing to mounting frame
Easy slide-and-lock blower attachment for tight seal for CFM performance and quiet sones
Two mounting locations for module accessories

Grille
ABS polymeric construction
Clean cover design with floating mounted positioning
SlideClip™ Grille provides easy and intuitive grill attachment with no springs

• 5-year warranty on parts

SPECIFICATIONS

• CFM: 110-130-150
• Color Finish: White
• ENERGY STAR® certified: Yes
• Grille Length: 11.325
• Grille Width: 10.5
• UL Listed: No
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: No
• Night Light: No
• Radiation Damper Available: No
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Can Be Used To Comply With Title 24: No
• Manufacturer Warranty: 5 Years
• High Efficiency Luminaire: No
