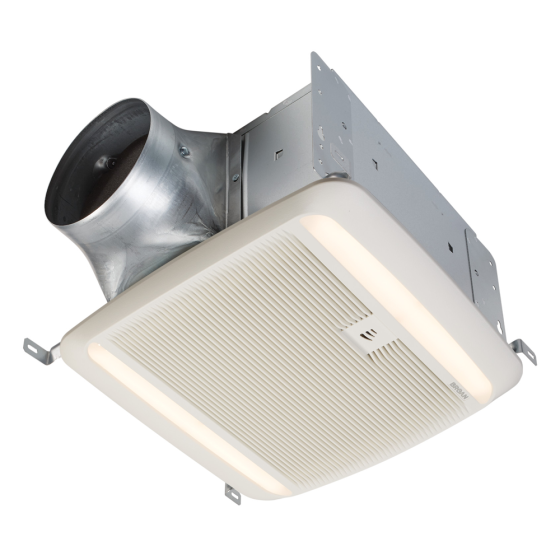

The Broan® QTXE110150DCSL ENERGY STAR® Certified Ventilation Fan offers powerful airflow, with exceptional performance, and ultra-quiet sound. The DC motor is selectable between 110, 130, and 150 CFM. The QT DC also offers ultra-quiet sound ratings, producing only 0.7 sones at 150 CFM. This line of fans is the perfect combination of performance, efficacy, and silent operation.
FEATURES & BENEFITS
• Selectable CFM with speeds of 110-130-150 • Quiet operation of 0.3-0.4-0.7 sones • DC motor helps maintain static pressure to ensure installed performance • Motor engineered for continuous operation • ENERGY STAR® Certified • Hanger bars to position housing anywhere on center joists • Highly energy efficient integrated LED light that is dimmable • Humidity sensing capability to properly ventilate the room • Rugged, galvanized steel construction to withstand moisture • Unique patented spacers for mounting to engineered "I" joists • UL listed for use in insulated ceilings (Type IC) • UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit • CFM (@ 0.1 SP): 110-130-150 • Duct Size: 6" Round • ENERGY STAR® certified: Yes • Grille Length: 13.75 • Grille Width: 14.25 • Housing Dimensions: 10-1/2" x 11-3/8" x 7-5/8" • Sound Level (Sones): 0.7 • UL Listed: Yes • Grille Finish: White • Humidity Sensing: Yes • Light Bulb Quantity: 1 • Motion Sensing: No • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: No • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes • Recommended Room Size (Sq Ft) : 105+ • Rated Amps: 0.5 • Voltage: 120 • Can Be Used to Comply with Title 24: No • Bulb (Recommended Type): Integrated LED Module • Minimum Construction Space Required: 2" x 8" • Manufacturer Warranty: 3 Years • High Efficiency Luminaire: No
BLOWER: • Plug-in, permanently lubricated, brushless DC motor for efficiency well beyond ENERGY STAR® requirements - engineered for continuous operation • Dynamically balanced centrifugal blower wheel for quiet, efficient performance • Low RPM for quiet operation • Airflow-smoothing baffles reduce turbulence • Selectable setting of 110, 130 or 150 CFM • Can be used to comply with ASHRAE 62.2, LEED, ENERGY STAR® for Homes and CA Title 24
HOUSING: • Rugged, galvanized steel construction • Metal, 6” round damper/duct connector with no metallic clatter • 7-5/8” height allows for 2” x 8” ceiling installations • Sturdy, easy, four-point mounting directly to joist • Includes unique, patented spacer for mounting to engineered “I” joists • Includes hanger bars to position housing anywhere between 16” to 24” on-center joists
LIGHTING / GRILLE: • Highly efficient, 18 watts, integrated LED, dimmable • LED lasts up to 25,000 hours • 3000K, 92 CRI, 1179 Lumens • Unique, low profile design for wide light pattern • Even lens diffusion eliminates hotspots
TO OPERATE FAN AND LIGHT: • Use only an ON/OFF or timer switch to operate the fan. • Use only an ON/OFF switch, timer switch or relay-switch to operate the LED light. • The LED light can be used with some dimmable switches (see below). • Both the fan and LED light can be put on one switch.
DIMMING CONTROLS: • May not be compatible with all dimmer controls • Each application is unique and various factors such as load, common neutrals or other electrical products on the circuit can, in certain instances, cause variance in system performance. • Dimmer model numbers vary slightly depending on color, packaging type, etc. such that variations of Model numbers may be suitable. Consult dimming system manufacturer for additional support in operation
HUMIDITY SENSING TECHNOLOGY: • Detects humidity at the ceiling where it is greatest, which minimizes reaction time. • Automatically turns fan on when either of these conditions is detected: - Rapid to moderate humidity increase; - Humidity above set point (50%-80% RH). • Humidity level is set with easily accessible user adjustment. • Can be used to comply with CALGreen standards. • Two wire manual operation for odor control - Turns fan ON when power line through wall switch is cycled ON, OFF and back ON. • After humidity has stabilized and is below set point or after turned on through power line cycling, fan remains on until user adjustable (5 to 60 minutes) time delay set point is reached. • U.L. Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only). • U.L. Listed for use in insulated ceilings (Type IC).
