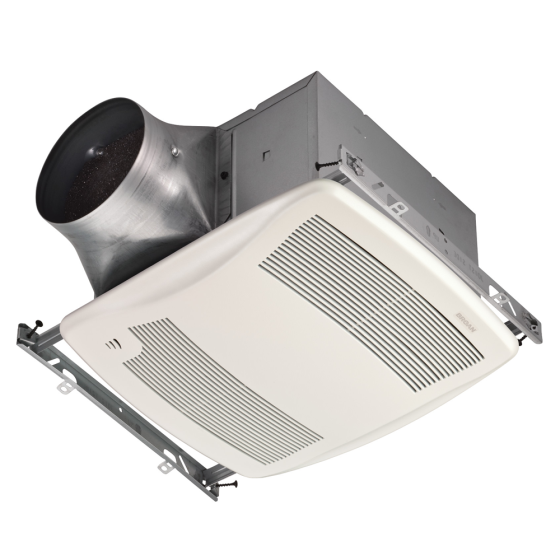

Broan® Ultra Green ENERGY STAR® Certified Humidity Sensing Exhaust Fan, 6 in. Round Duct, 0.3 Sones, 110CFM, 120Vac

APPLICATIONS

The Broan® XB110H ULTRA GREEN™ ENERGY STAR® Certified Humidity Sensing Fan delivers premium performance for today's demanding requirements. 110 CFM of premium ventilation with ULTRASilent™ technology operates at the lowest sound rating achievable, less than 0.3 sones. The ULTRASense™ technology reacts to a rise in humidity, meaning you no longer have to remember to turn on the fan when you shower. The ULTRASmart DC motor and control technology provides energy efficiency almost 10 times greater than ENERGY STAR® requirements. With ULTRAQuick™ installation technology the XB110H provides the fastest, easiest, and most universal installation in remodel, retrofit, and new construction.

FEATURES & BENEFITS

• 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
• 0.3 Sones for Ultra quiet performance, you might not notice it's on
• Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition
• ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
• Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation
• Mounting Frame fits any type of joist, I-Joist or truss construction for a in.no guesswork in. installation to make the work fast and easy
• ENERGY STAR® certified ventilation fan
• UL listed for use over tubs/showers with GFCI circuit
• Powerful enough for rooms up to 100 sq. ft.
• Brighter white grilles blend in to match most common ceiling paint
• Corrosion resistant galvanized steel housing stands up to moisture
• Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
• CFM: 110
• Duct Size: 6” Round Duct
• ENERGY STAR® certified: Yes
• Grille Length: 13.125
• Grille Width: 14
• Housing Dimensions: 10-1/2 in. x 11-3/8 in. x 7-5/8 in.
• Sound Level (Sones): 0.3
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: Yes
• Motion Sensing: No
• Motor Engineered for Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: Yes
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Recommended Room Size (Sq Ft): 105
• Rated Amps: 0.4
• Voltage: 120
• Can Be Used To Comply With Title 24: Yes
• Minimum Construction Space Required: 2 in. x 8 in.
• Manufacturer Warranty: 3 Years
• High Efficiency Luminaire: No

• ULTRASMART™ DC Motor and Control Technology
• DC motor for efficiency well beyond ENERGY STAR® requirements.
• Can be used to comply with ASHRAE 62.2, LEED, ENERGY STAR® for Homes and CA Title 24.
• Powerful operation maintained over a wide range of real-world installations (CFM ratings maintained through at least 0.25” static pressure).
• Rated for Continuous Operation.

• ULTRASILENT™ Sound Technology
• HVI certified, best-achievable 0.3 Sone level provides nearly silent operation for a relaxing environment.
• State-of-the-art blower and duct outlet design smooths airflow.
• High tech DC motor designed for nearly silent operation.

• ULTRAQUICK™ Installation Technology
• Unique telescoping mounting frame fits through retrofit drywall opening to allow easy installation from the room side. No attic access needed!
• Captive screws allow for easy new construction installation.
• Mounting frame positioning tabs provide easy vertical positioning for new construction.
• Easy to insert and remove snap-in housing. No screws required!
• Easy to insert and remove snap-in blower.
• Inside or outside duct connector and knockout plate mounting provides flexibility for new construction or retrofit.

• ULTRASENSE™ Humidity Sensing Technology
• Detects humidity at the ceiling where it is greatest, which minimizes reaction time.
• Automatically turns fan on when either of these conditions is detected:
- Rapid to moderate humidity increase;
- Humidity above set-point (50%-80% RH).
• Humidity level is set with easily accessible user adjustment.
• Can be used to comply with CALGreen standards.
• Two wire manual operation for odor control - Turns fan ON when power line through wall switch is cycled ON, OFF and back ON.
• After humidity has stabilized and is below set-point or after manually initiated through power line cycling, fan remains on until user adjustable (5 to 60 minutes) time delay set point is reached.

• U.L. Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only).
• Use only ON/OFF switch, mechanical timer or relay-switched control.
• 3-year warranty.
