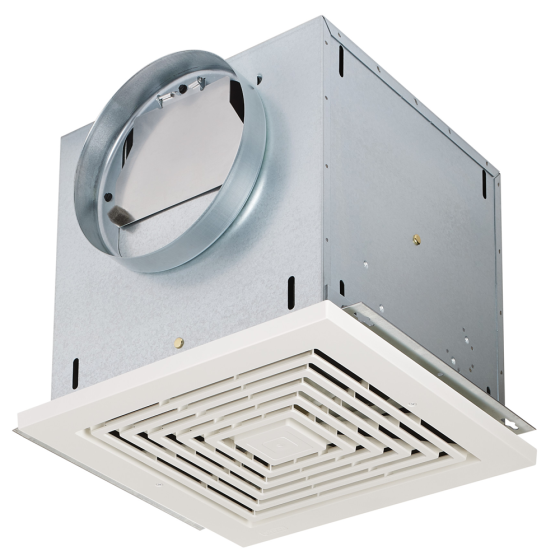

Broane® ENERGY STAR® Certified High-Capacity, Light Commercial Ceiling Mount Ventilation Fan with 8 in. Round Duct, 200CFM, 1.0 Sones, 120Vac

FEATURES

Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.

• 200 CFM, 1.0 sones ceiling mount commercial ventilation fan
• Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
• Duct Horizontally or vertically
• Standard 8" round ducting for all ENERGY STAR® certified models
• ENERGY STAR® certified
• AMCA and HVI air and sound tested
• Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
• Model 80L Variable speed control adjusts blower speed and sound level (available separately)
• Metal upgrade grille cover available (MG1)
• Radiation Damper available to prevent the spread of fire (Model RD1 sold separately)
• cULus Listed for safety and protection

SPECIFICATIONS

GRILLE
• Conceals interior
• Low profile styling blends with any decor
• White plastic (optional metal grille, finished with white enamel paint is available - Model MG1)

BLOWER
• Low RPM for quiet operation
• Resilient anti-vibration mounts
• Dynamically-balanced, centrifugal blower wheel for quiet, efficient performance
• Permanently lubricated, thermally protected motor
• Plug-in motor rated at 120 VAC
• Designed for continuous operation

HOUSING
• Housing Dimensions: 12.25” x 12.25” x 11.75”
• Rugged, 20 gauge galvanized steel
• 8” round duct connector
• 1/2” acoustic insulation inside
• Not for use in a cooking area
• May be installed in ceiling or wall (size permitting)
• 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements
• Automatic backdraft damper located within duct connector
• Factory-shipped in horizontal discharge position - easily converted to vertical discharge
