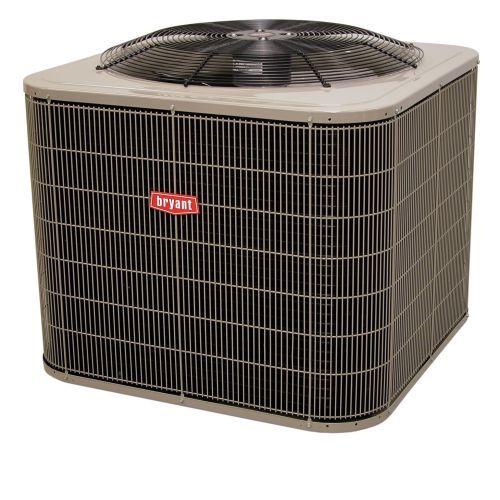

Bryant 4 Ton, 13.8-15 SEER2, Single Stage, Air Conditioner, 208/1
FEATURES & BENEFITS
- Enjoy cool summer comfort with up to 16.5 SEER2 & up to 13.5 EER2 efficiency
- Quiet performance with sound as low as 73 dB
- Enjoy energy savings, remote access capability and in-depth energy reporting with the ecobee Smart Thermostat by Bryant.
- DuraGuard™ protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
On January 1, 2023, the Department of Energy (DOE) will require new testing procedures for developing efficiency ratings on split system air conditioners. Products that have gone through these updated testing procedures will display SEER2 and EER2 ratings, in addition to the older SEER/EER ratings. The 2023 testing procedures are more stringent and will result in lower efficiency ratings compared to the older ratings. As we transition all our products to these new testing procedures, we'll publish both ratings on our air conditioners category page for better comparison.
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
SPECIFICATIONS
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 16.5 SEER2 / Up to 13.5 EER2
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
SOUND
Quiet levels During most common cooling operating condition: 73 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the ecobee Smart Thermostat by Bryant
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Protections Filter drier
Controls supported ecobee Smart Thermostat Powered by Bryant and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design DuraGuard™ Plus protection: heavy-gauge sheet metal construction; dense wire coil guard available; baked-on powder paint
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
California residents please see Proposition 65
"| Electrical | |
|---|---|
| FLA | 1.52 | Hertz | 60 | LRA | 120 | MCA | 32.8 | MOCP | 50 | Phase | 1 | RLA | 25 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Energy Star Rated | Yes |
| Specification | |
|---|---|
| SEER2 | 15 | Low Pressure Switch | No | Tonnage | 4 | Suction Line Size | 7/8 | Suction Line Fitting | Sweat | Stages | 1 | Sound Level | 76 | Rows/FPI | 20 | Rows | 2 | Refrigerant | R-410A | Metering Device | TXV | Max Piping Length | 250 ft. | Compressor Sound Blanket | No | Liquid Line Size | 3/8 | Liquid Line Fitting | Sweat | Inverter | No | High Pressure Switch | No | Cooling Stages | 1 | Condenser RPM | 1100 | Condenser Motor Type | Direct Drive | Condenser Motor HP | 1/4 | Condenser Air Flow | Vertical | Compressor Type | Scroll |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 182 | Exterior Dimensions (D) (inches) | 31.190000 | Exterior Dimensions (W) (inches) | 31.190000 | Exterior Dimensions (H) (inches) | 32.060000 | Shipping Weight (lbs) | 199.000000 |
| Warranty | |
|---|---|
| Compressor Warranty | 10 Year (When Registered in Residential Application) | Parts Warranty | 10 Year (When Registered in Residential Application) |
| General | |
|---|---|
| Tier | Legacy |
