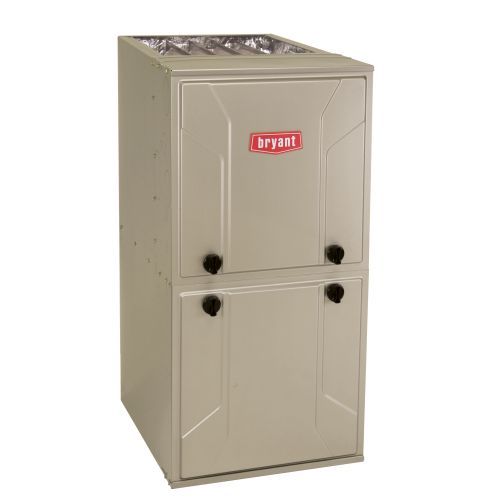

Bryant Preferred™ Multipoise Furnace, 96% AFUE, Two-Stage, Variable Speed, 115/1
The 926TC Multipoise Variable 25-Speed Condensing Gas Furnace features the two-stage Preferred™ Series System. The Perfect Heat® technology two-stage gas valve is at the heart of the comfort provided by this furnace, along with the variable-speed ECM blower motor, and two-speed inducer motor. With an Annual Fuel Utilization Efficiency (AFUE) up to 96.7% AFUE, the Preferred™ Series two-stage gas furnace provides exceptional savings as well when compared to standard gas furnaces. This Preferred™ Series Gas Furnace also features 4-way multipoise installation flexibility, and is available in nine model sizes. The 926TC can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. All sizes are design certified in Canada. This furnace is not designed for use in recreation vehicles, manufactured (mobile) homes or outdoors.
PERFORMANCE
• Variable 25-speed, constant-torque (VCT) ECM blower motor, two-speed inducer motor, and two-stage gas valve
• Fully-insulated casing including blower section
• Aluminized-steel primary heat exchanger
• Stainless-steel condensing secondary heat exchanger
• Silicon Nitride Perfect Heat™ Hot Surface Igniter
• Adjustable blower speed for heating, cooling, continuous fan, and dehumidification
• Perfect Heat Technology® intelligently stages low heat cycles to match indoor conditions
• Fan On Plus™ Technology allows adjustment to the constant fan speed from a compatible thermostat
INSTALLATION FLEXIBILITY
• 4-way multipoise design for upflow, downflow or horizontal installations, with unique vent elbow and optional throughthe-cabinet downflow venting capability
• On-board NFC antenna makes setup a tap away when using the Bryant service technician app
• Factory-configured ready for upflow applications
• Installation flexibility: sidewall or vertical vent
• Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service
• Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air
APPLICATIONS
• HYBRID HEAT® Dual Fuel Compatible
• Convertible to propane with gas conversion accessory kit
• Convenient Air Purifier and Humidifier connections
• Twinning capable with accessory kit
• 5 ton sizes allow 15 Amp breaker with accessory (order separately)
• SmartEvap™ technology prevents condensate that remains on the coil after a dehumidification cycle from re-humidifying throughout the home
CERTIFICATIONS
• All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces: 95.0%+ AFUE
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193
• All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
LIMITED WARRANTY *
• Default 5-year parts limited warranty
• Default 20-year heat exchanger limited warranty - 10-year parts and lifetime limited heat exchanger warranty with timely registration* Equipment must be registered within 90 days of original installation,
except in jurisdictions where warranty benefits cannot be conditioned on registration.
*Applies to original purchaser/homeowner and not available to subsequent oweners.See warranty certificate for complete details and restrictions, including warranty coverage of other applications.
