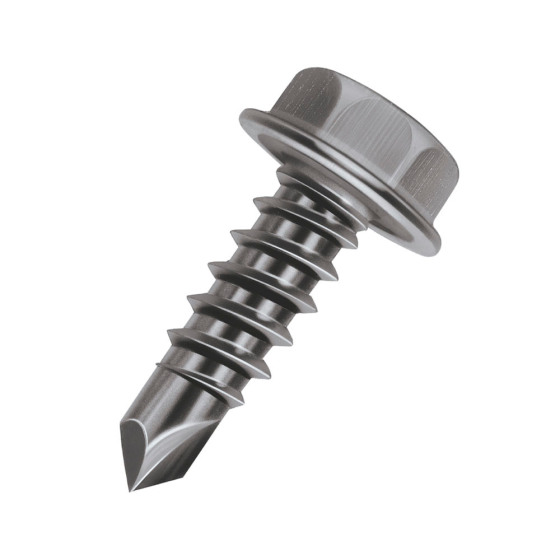

Malco® Bit-Tip® Screws with Drill Point, 1/4 in. Hex Head, 3/4 in. L, #8 (500 pk)
APPLICATIONS
By drilling its own hole, Bit-Tip® Drill and Tap Screws produces the optimum hole size, resulting in better thread engagement and a tighter fit. One operation fastening also means no alignment problems.
Bit-Tip® has a wide range of industry applications. Select the Bit-Tip® that’s right for the job. Point length will determine metal thickness that can be drilled, tapped and fastened. Also, plywood, soft wood, composition board, drywall, insulation and laminates may be fastened to metal framing or components.
Made from strong, high quality, specially heat-treated steel. Bit-Tip® Self Drilling and Tapping Screws are precision cold forged insuring uniformity of dimension and drill point contours.
The versatile Bit-Tip® Screw is an excellent replacement for fastening operations now using rivets, nuts and bolts, spot welds or adhesives. Bit-Tip® also eliminates the need for costly auxiliary fastening equipment such as drill bits, taps and welding equipment.
Requires only a standard screw gun power tool rated at 2500 RPM equipped with drilling depth locator.
FEATURES & BENEFITS
• Head Type: Hex
• Screw Size: 8-18x3/4
• Driver Size: 1/4
• Material Thickness: .035-.100
Specification | |
---|---|
Length | 3/4 in. | Head | Hex | Head Size | 1/4" | Point | Drill Point | Thread Size | #8 | Threads Per Inch | 18 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2.18 | Exterior Dimensions (D) (inches) | 4.500000 | Exterior Dimensions (W) (inches) | 4.500000 | Exterior Dimensions (H) (inches) | 3.750000 | Shipping Weight (lbs) | 5.000000 |
