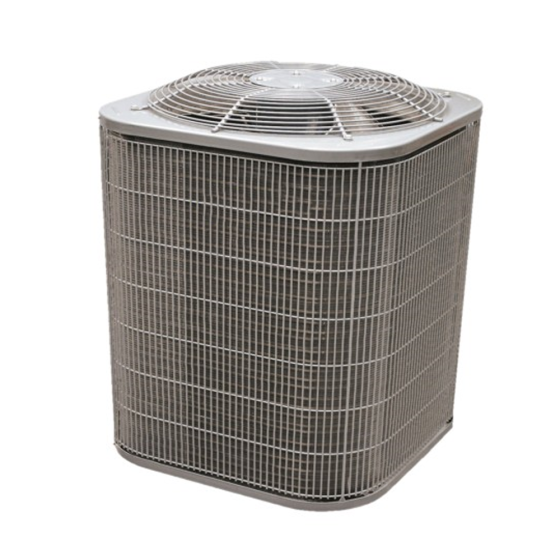

Builder Series 17 SEER2, Two Stage, Heat Pump Condenser, 208/1

  • California Prop 65

Industry leading Features / Benefits
Efficiency
• Up to 17.0 SEER2 (18.5 SEER) / Up to 13.0 EER2 (14 EER) / Up to 8.1 HSPF2 (9.5 HSPF)
• Indoor air quality accessories available
Sound
• Sound level as low as 70dBA
Comfort
• System supports Thermidistat or standard 2-stage thermostat controls
Reliability
• Puron refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
• Front-seating service valves
• 2-stage scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Low pressure switch
• Filter drier
• Balanced refrigeration system for maximum reliability
Durability
• Protection Package: Solid, Durable sheet metal construction
• Pre-painted cabinet finish over galvanized steel
Applications
• Long-line - up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)
• Low ambient cooling (down to 0°F / -17.8°C ) with approved low ambient accessory kits.

This unit has been designed utilizing Puron® refrigerant. This environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer.
NOTE: :Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information
