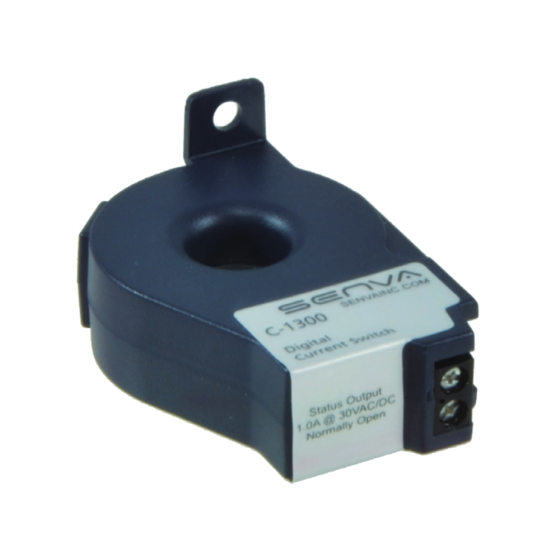

Solid-Core Fixed Current Switch, 0.25A-50A, Terminals

FEATURES & BENEFITS

• Amperage Range: 0.25A (on)-50A (50A Max.)
• Output Type: NO, solid-state FET
• Output Rating: 1.0A@30VAC/DC Max.
• Temperature Rating: -15~60 ° C
• Insulation Class 600V RMS. For use on insulated conductors only! Use minimum 75 ° C insulated conductor
• Sensor Power: Induced
• Frequency Range: 50/60Hz
• Dimensions: ( LxWxH) 2.27” x 1.60” x 1.04”
• Sensor Aperture: 0.52”
