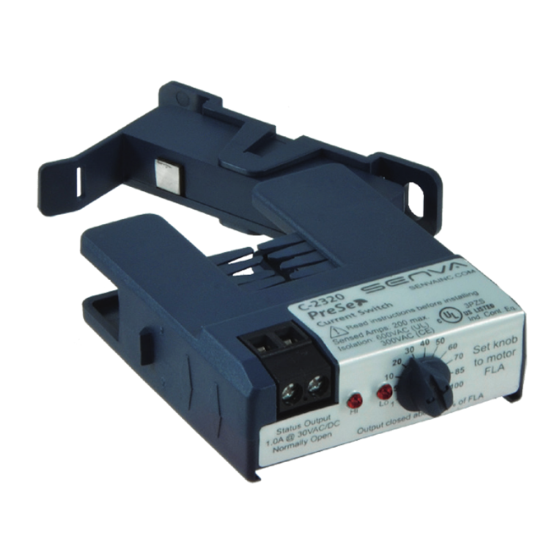

Mini Split-Core Fixed Current Switch, 0.5A-100A, Terminals
Item
C-2320
FEATURES & BENEFITS
• Amperage Range: 0.5A (on)~100A (200A Max.)
• Output Type: NO, solid-state FET
• Output Rating: 1.0A@30VAC/DC Max.
• Temperature Rating: -15~60 ° C
• Insulation Class 600V RMS. For use on insulated conductors only! Use minimum 75 ° C insulated conductor
• Sensor Power: Induced
• Frequency Range: 50/60Hz
• Dimensions ( LxWxH): 2.94” x 2.23” x 0.82” (1.4” H with optional relay module)
• Sensor Aperture: 0.75”
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 3.000000 |
