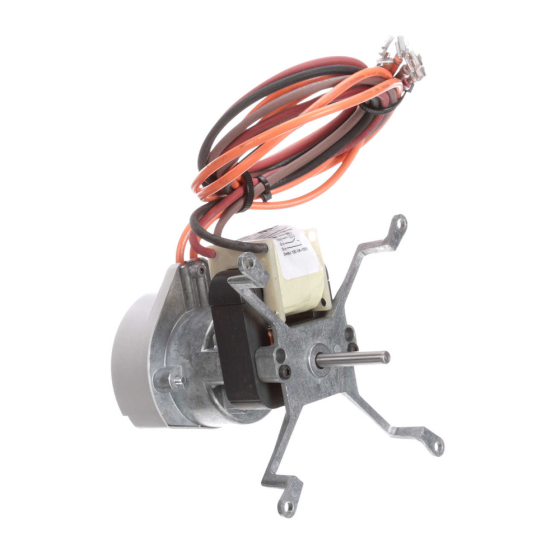

Mars® C-Frame Inducer Motor 1/200hp - 3000rpm - 208/230Vac - 0.25A
Item
K628
FEATURES & BENEFITS
• Output HP: 1/200• Speed: 3000 rpm
• Current: 0.25 A
• Voltage: 208/230Vac
• Frame: C-FRAME
• Duty: Air Over
• Ambient Temperature: 40 °C
• Electrical Type: Shaded Pole
• Rotation: Clockwise
• Starting Method: Across The Line
• Poles: 2
• Mounting: Bracket
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Round
• Overall Length: 5.46 in
• Shaft Diameter: 0.250 in
• Shaft Extension: 1.50 in
| Electrical | |
|---|---|
| Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 4.000000 |
