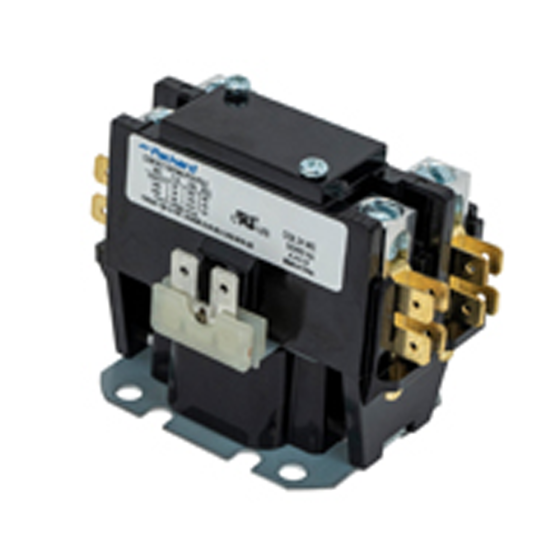

Packard Contactor 1 Pole with Shunt, 24V Coil, 40FLA, 50RA, Lug Terminals
Item
C140A
FEATURES & BENEFITS
• 1 Pole with Shunt.• FLA: 40.
• Resistive Amps: 50.
• Coil Voltage: 24Vac.
• 240LRA @ 240Vac, 200LRA @ 480Vac, 160LRA @ 600Vac.
• 4 Quick Connect Terminals Per Lug.
• Box lug terminals.
• Insulation: Class B.
• Versatile Foot Mount.
• In accordance with U.L. Bulletin No. 508 "Industrial Control Equipment", contactors meet specifications for devices up to 600 VAC.
| Electrical | |
|---|---|
| FLA | 40 | Hertz | 60 | Voltage | 240/480/600 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 24Vac | Poles | 1 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 0.500000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 3.000000 |
