Honeywell Remote Outdoor Sensor - Test

FEATURES

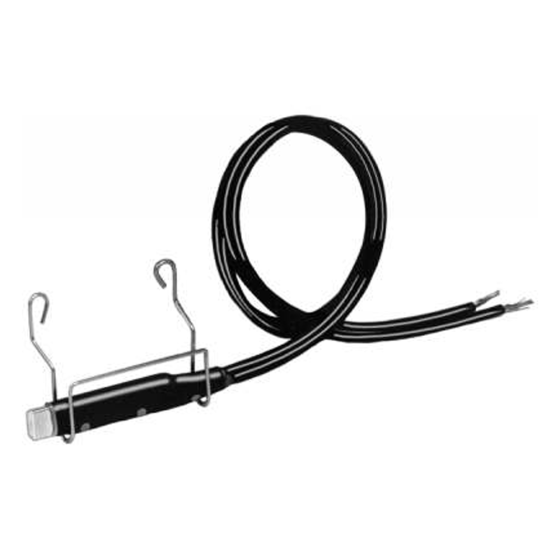

The C7089U Outdoor Sensor is compatible with certain Resideo thermostats and controllers, such as the THX9421R Prestige thermostat with EIM, TH8000 series RedLINK and Wi-Fi thermostats, TH7000 series thermostat, TH6220U and TH6320U models of the T6 Pro series thermostats, TH6220WF and TH6320WF models of the T6 Wi-Fi series thermostats, the HZ432 zone panel, and the H6062 HumidiPRO controller.

Remote outdoor temperature sensor, when installed, the current outdoor temperature is displayed. Also can be used to manage dual fuel and lock-out expensive auxiliary heat in heat pump applications.

• Mounting clip allows easy sensor positioning on siding or soffit.
• Includes 60 in. lead wires.
• Factory calibrated; no field calibration required.
• Maximum wire run of 200 feet.

SPECIFICATIONS

• Dimensions (in.): 2 1/4 in. x 3/8 in. with 60 in. lead wires.
• Dimensions (mm): 57 mm x 10 mm with 1524 mm lead wires.
• Used With: Honeywell thermostats including the TH8000 series RedLINK and Wi-Fi, TH7000 series, TH6220 and TH6320 (T6 Pro series), TH6220WF and TH6320WF (Lyric T6 Pro series); and controllers such as the HZ432 zone panel and the H6062 HumidiPRO controller
• Mounting: Mounting Clip and screws provided.
• Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
• Operating Temperature Range (F): -40 F to +120 F
• Operating Temperature Range (C): -40 C to +49 C
