Condensate Drain Trap Accessory for Packaged-Air Handling Units (6 to 30 Tons)
Item
CAOVRFLW001A00
FEATURES

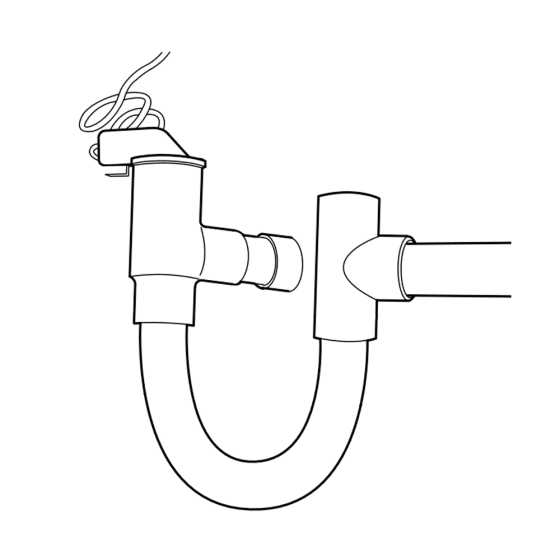

The condensate drain trap accessory kit (Fig. 1) includes a compact, adjustable drain pan trap for 6 to 30 ton packaged air handling units. The trap can be used in vertical (up-flow) or horizontal installations, and is easier to install and service than a conventional trap. The trap includes an over-flow shutoff switch that can be wired to turn off the unit or system if the drain trap becomes plugged. The included wire harness has a lead that can be connected to an alarm if desired.
The condensate drain trap accessory also makes trap maintenance easier. The bottom of the trap is transparent to show obstructions and a flexible cleaning brush is provided for routine maintenance.
INCLUDES
• 1 Transparent Trap Tube• 1 Overflow Switch Assembly
• 1 1-in. PVC Nipple
• 1 24-v Relay
• 1 Wire Harness
• 1 1-in. x 1-in. x 3 ⁄ 4-in. PVC Tee
• 1 3 ⁄ 4-in. x 3⁄ 4 -in. x 3⁄ 4 -in. PVC Tee
• 1 Pipe Cap
• 1 Cleaning Brush
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 1.300000 |
