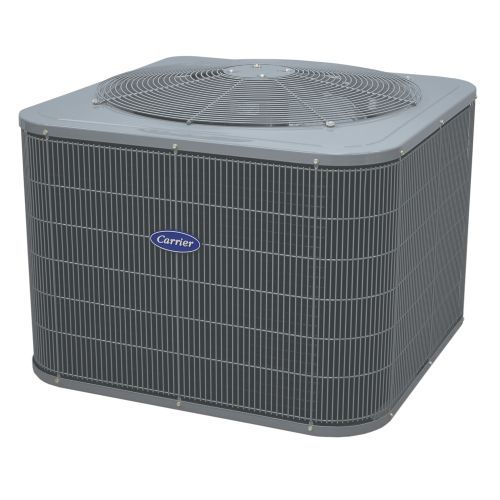

Carrier 2 Ton, 14.3-16 SEER2 Single Stage, Air Conditioner, 208/1
Item
24SCA524W003
Features / Benefits
Efficiency
Efficiency
- 13.8 - 16.0 SEER2 (14 - 16.5 SEER) / 11.2 – 13.0 EER2 (11.2 - 13.0EER)
- Microtube Technology refrigeration system
- Indoor air quality accessories available
Reliability
- Puron refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
- Scroll compressor
- Internal pressure relief valve
- Internal thermal overload
- Filter drier
Durability
WeatherArmor™ Protection Package:
- Solid, durable sheet metal construction
- Dense wire coil guard
Applications
- Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
- Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits. mThis unit has been designed utilizing Carrier’s Puron refrigerant. The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer.
NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
| Electrical | |
|---|---|
| FLA | 0.6 | Hertz | 60 | LRA | 49.7 | MCA | 12.2 | MOCP | 20 | Phase | 1 | RLA | 9.3 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| SEER2 | 16 | Tonnage | 2 | Suction Line Size | 3/4 | Suction Line Fitting | Sweat | Stages | 1 | Sound Level | 73 | Rows/FPI | 25 | Rows | 1 | Refrigerant | R-410A | Metering Device | TXV | Max Piping Length | 250 ft. | Compressor Sound Blanket | No | Liquid Line Size | 3/8 | Liquid Line Fitting | Sweat | Inverter | No | Cooling Stages | 1 | Condenser RPM | 1100 | Condenser Motor Type | Direct Drive | Condenser Motor HP | 1/10 | Condenser Air Flow | Vertical | Compressor Type | Scroll |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 123 | Exterior Dimensions (D) (inches) | 25.750000 | Exterior Dimensions (W) (inches) | 25.750000 | Exterior Dimensions (H) (inches) | 35.500000 | Shipping Weight (lbs) | 137.000000 |
| Warranty | |
|---|---|
| Compressor Warranty | 10 Year (When Registered in Residential Application) | Parts Warranty | 10 Year (When Registered in Residential Application) |
| General | |
|---|---|
| Tier | Comfort |
